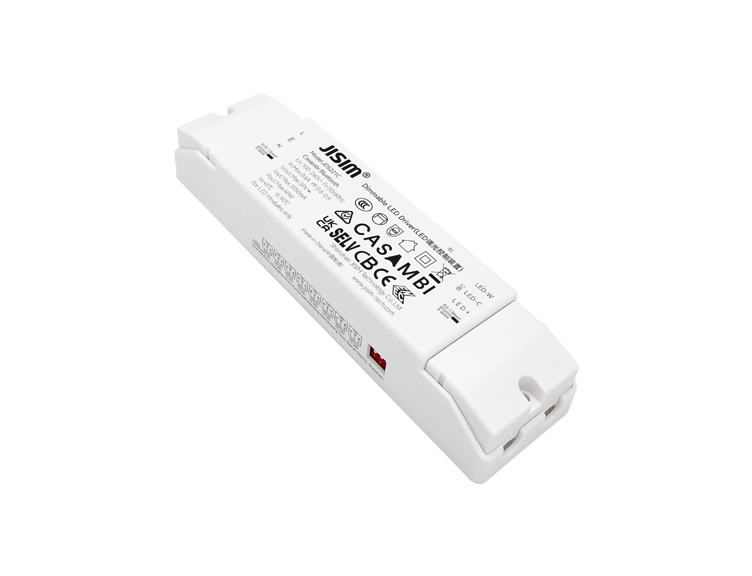

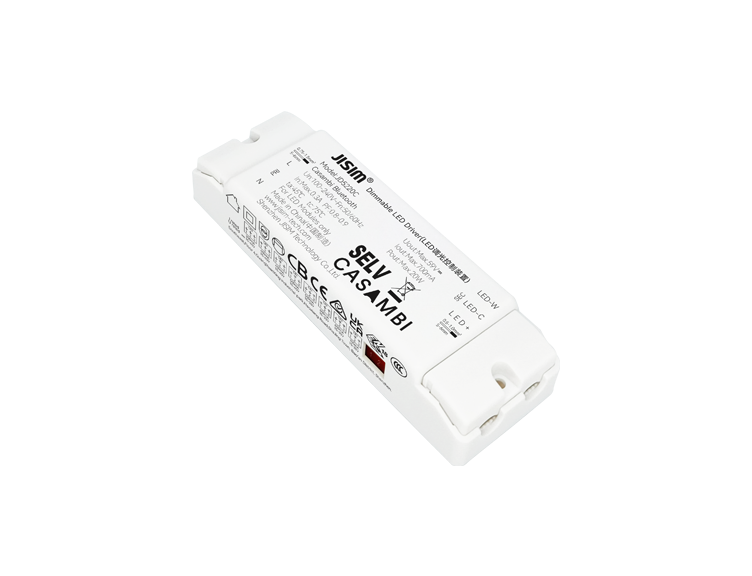

Casambi Bluetooth Independent CC CCT Tunable Series

Compact design applicable to small cutout downlights, spotlights and linear lights
Dimmable CCT-adjustable constant current driver with high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with powerful networking performance
Smooth high-performance dimming, flicker-free and no audible noise
Dimming range: 0.1%~100%, built-in soft start function
Supports control via Casambi App
Output current configurable through DIP switches
Output short-circuit, open-circuit and overload protection
Meets SELV safety standards
Screw terminal blocks for input and output wiring
Ambient temperature range: -20℃~+45℃; maximum housing temperature: 75/80/90℃
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net weight: 67.9±10g per unit, small package:79.4g per unit, medium carton:6.65kg per carton, large carton:27.5kg per carton (Refer to specification sheet for full details)
Package

Medium carton: 80pcs/48pcs/30pcs per carton Large carton: 320pcs/192pcs/120pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

75/80/90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
