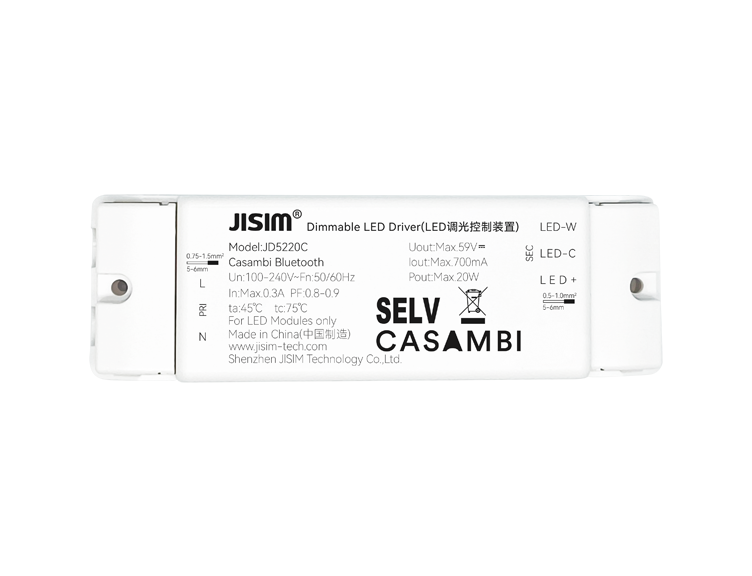

JD5220C Casambi Bluetooth 20W 350-700mA 100-240VAC DIP

Compact design: Suitable for small cutout downlights, spotlights and linear lights
Dimmable color-tunable constant current driver: High power factor, high efficiency and long service life
Bluetooth communication: Developed on Casambi platform with powerful networking performance
Smooth high-performance dimming: Flicker-free and no audible noise
Dimming range: 0.1%~100%, built-in soft start function
Control: Casambi App compatible

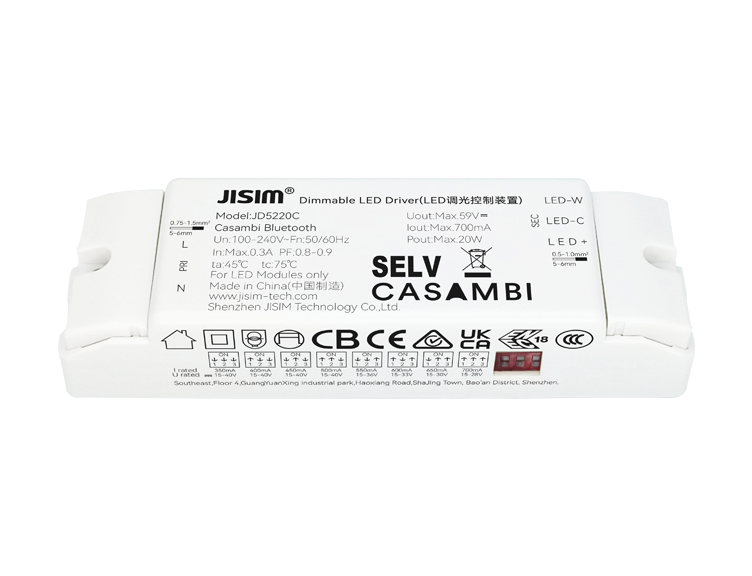

Current adjustment: Output current configurable via DIP switches
Protections: Output short-circuit, open-circuit and overload protection
Certification: Compliant with extra-low safety voltage standards
Wiring: Screw locking terminals for input and output
Working temperature: Ambient temperature -20℃~+45℃; max case temperature 75℃
Applicable fixtures: Class I, II, III luminaires
Protection class: Class II

Consult Now Buy Now

Model Number

JD5220C
Rated Voltage

100-240Vac
Output Current

350-700mA
Product Dimension

120*38*23mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 95.4±10g per piece, small package: 116g per piece, medium carton: 5.87kg per carton, large carton: 24.4kg per carton
Packaging

Medium carton: 48pcs per carton Large carton: 192pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Current
Output Power

Max.20W
Output Voltage

15-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
