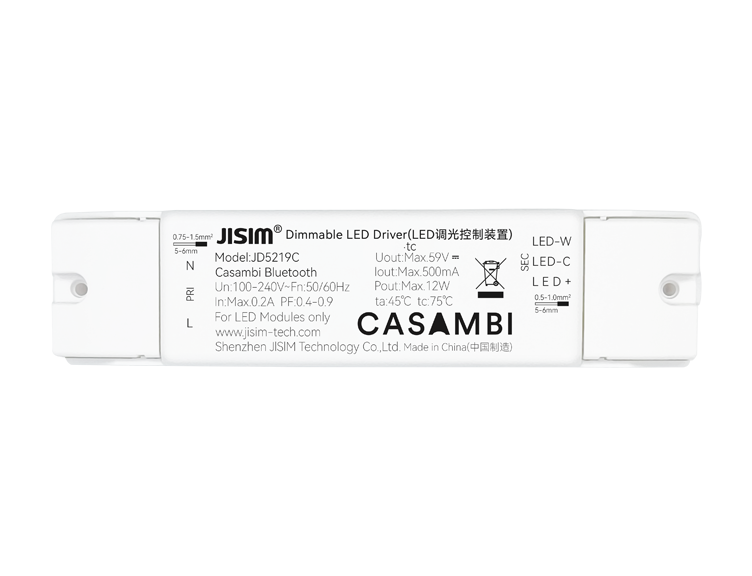

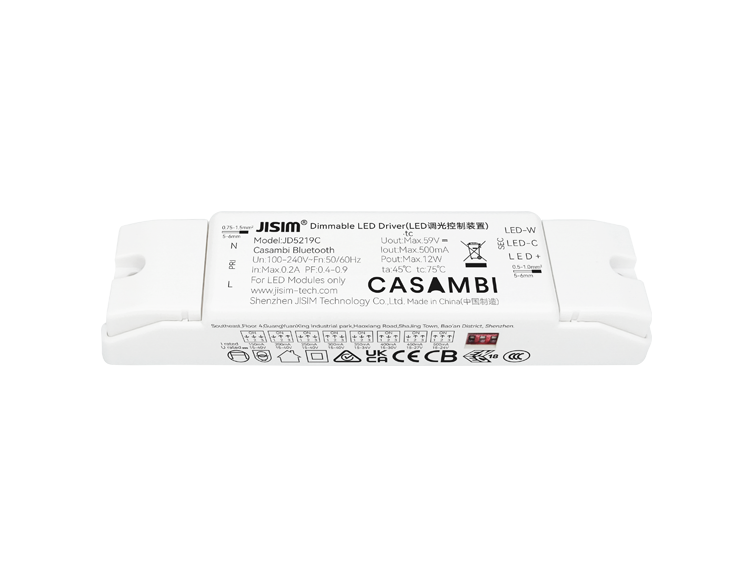

JD5219C Casambi Bluetooth 12W 150-500mA 100-240VAC DIP

Compact design suitable for small cutout downlights, spotlights and linear lights
Dimmable color-adjustable constant current driver with high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range: 0.1%~100%, built-in soft start function
Supports Casambi App control
Output current selectable via DIP switch
Output short-circuit, open-circuit and overload protection
Compliant with safety extra-low voltage standards
Screw-locked terminals for input and output wiring
Ambient temperature: -20℃~+45℃, maximum housing temperature: 75℃
Applicable to Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD5219C
Rated Voltage

100-240Vac
Output Current

150-500mA
Product Dimension

126*30*20mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 67.9±10g per piece, small package: 79.4g per piece, medium carton: 6.65kg per carton, large carton: 27.5kg per carton
Packaging

Medium carton: 80pcs per carton Large carton: 320pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Current
Output Power

Max.12W
Output Voltage

15-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
