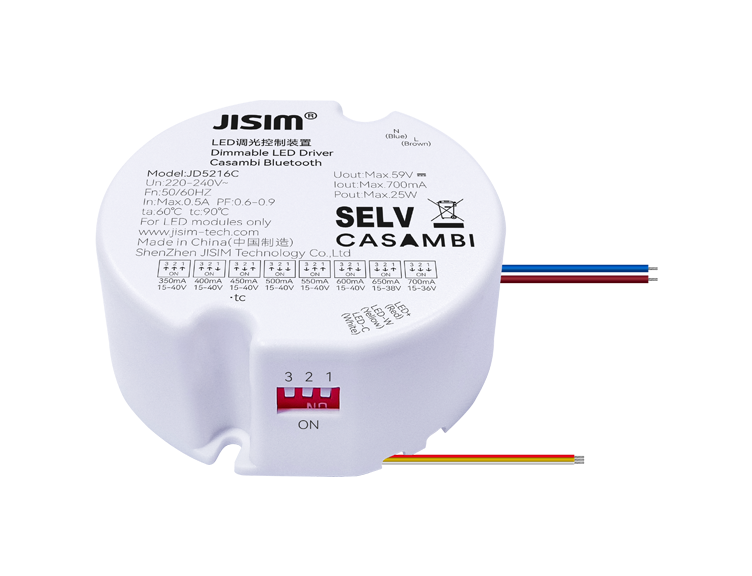

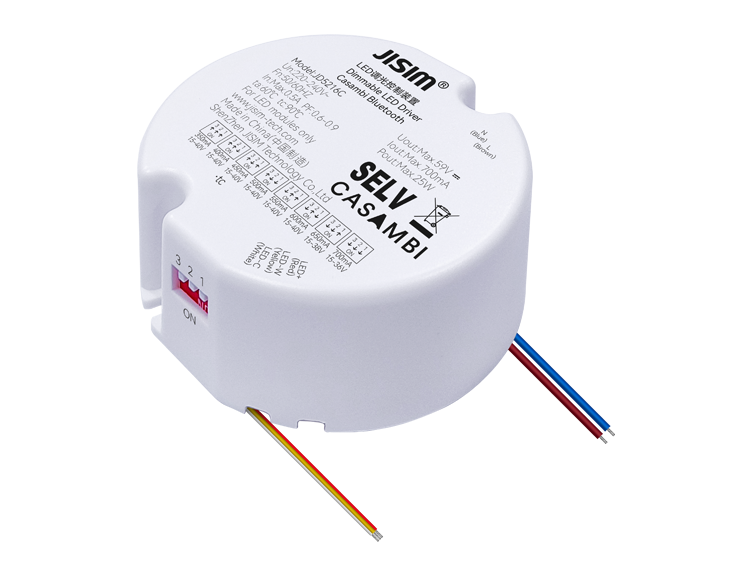

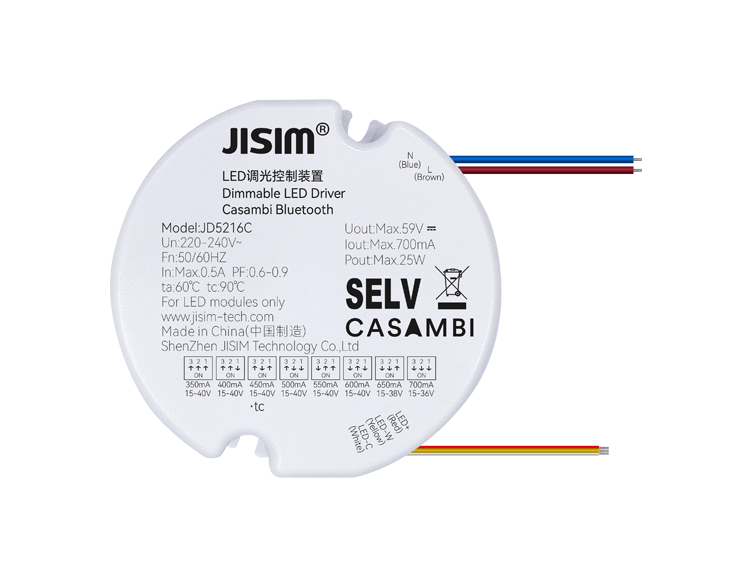

JD5216C Casambi Bluetooth 25W 350-700mA 220-240VAC DIP

Compact design: Suitable for surface mounted downlights, spotlights, track lights and wall lamps
Built-in driver: Equipped with external IPEX antenna
Dimmable color-adjustable constant current driver: High power factor, high efficiency and long service life
Bluetooth communication: Developed based on Casambi platform with strong networking capability
Smooth high-performance dimming: Flicker-free and no noise
Dimming range: 0.1%~100%, built-in soft start function
Control: Supports Casambi App control
Current setting: Output current selectable via DIP switches
Protection: Output short-circuit, open-circuit and overload protection
Standard: Complies with safety extra-low voltage standards
Wiring: Lead terminals for input and output
Temperature: Ambient temperature -20℃~+60℃, maximum housing temperature 90℃
Sealing: Internal glue potting enhances protection for lamps requiring waterproof and moisture-proof properties
Applicable lamps: Class I, II and III luminaires
Protection class: Class II

Consult Now Buy Now

Model Number

JD5216C
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

65*63*26mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 119±10g per piece, small package: 133.9g per piece, medium carton: 7.3kg per carton, large carton: 29.9kg per carton
Packaging

Medium carton: 52pcs per carton Large carton: 208pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Current
Output Power

Max.25W
Output Voltage

15-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
