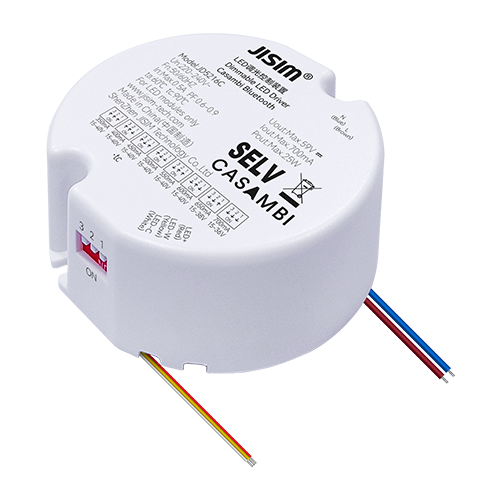

Casambi Bluetooth Built-in CC CCT Tunable Series

Compact design suitable for surface mount downlights, spotlights, track lights and wall lamps
Built-in driver equipped with external Ipex antenna
Dimmable and color-adjustable constant current driver featuring high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with strong networking capacity
High-performance smooth dimming, flicker-free and noise-free
Dimming range: 0.1%~100%, with built-in soft start function
Casambi App control supported
Output current selectable via DIP switch
Output short-circuit, open-circuit and overload protection
Compliant with SELV safety standards
Lead wiring for input and output terminals
Ambient temperature: -20℃~+60℃, maximum case temperature: 90℃
Internal glue potting for sealing, enhancing protection for lamps requiring waterproof and moisture-proof performance
Compatible with Class I, II and III lamps
Protection Class II

Consult Now Buy Now

Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net weight: 84.5±10g per piece, small package:96.1g per piece, medium carton:6.64kg per carton, large carton:27.4kg per carton (See specification for details)
Package

Medium carton: 66pcs/52pcs per carton Large carton: 264pcs/208pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
