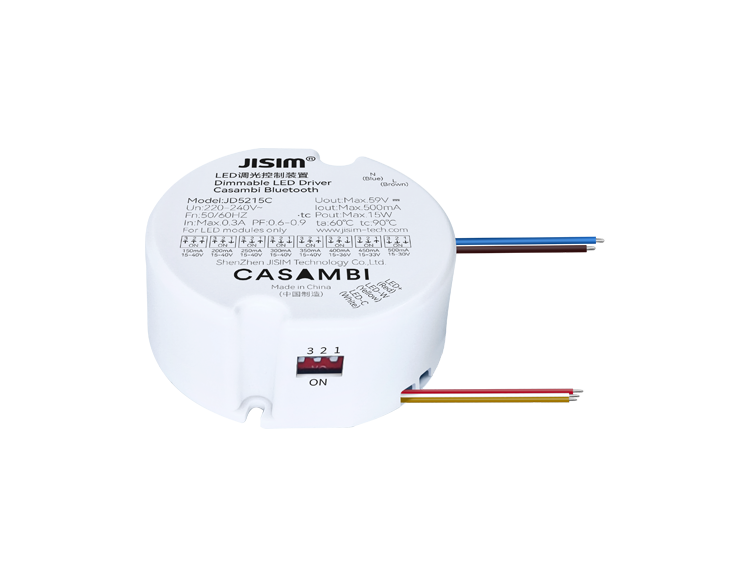

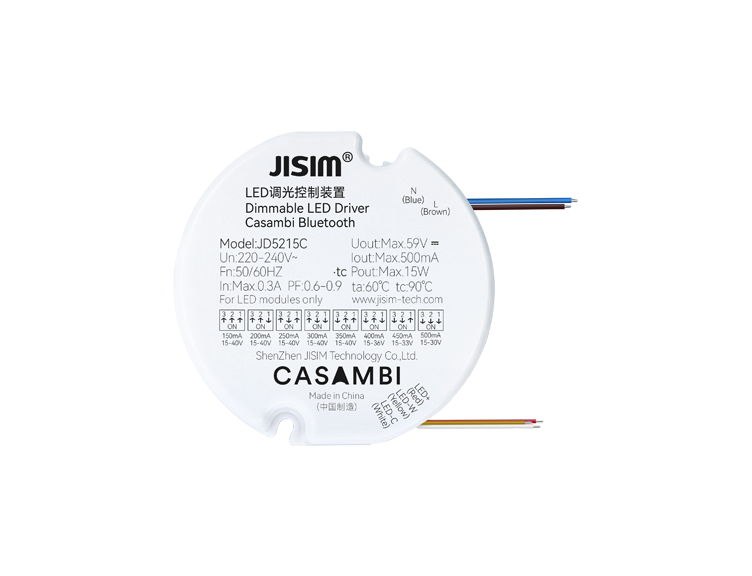

JD5215C CASAMBI Bluetooth 15W 150-500mA 220-240VAC DIP

Compact design suitable for surface mounted downlights, spotlights, track lights and wall lamps
Built-in driver equipped with external Ipex antenna
Dimmable tunable constant current driver featuring high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with powerful networking performance
Smooth high-performance dimming, flicker-free and noise-free
Dimming range: 0.1%~100%, built-in soft start function
Supports Casambi App control
Output current configurable via DIP switch
Output short-circuit, open-circuit and overload protection
Meets safety extra-low voltage standards
Lead-type terminals for input and output
Ambient temperature: -20℃~+60℃, maximum housing temperature: 90℃
Internal glue encapsulation for enhanced protection of lamps requiring waterproof and moistureproof performance
Applicable to Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD5215C
Rated Voltage

220-240Vac
Output Current

150-500mA
Product Dimension

55*53*23mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 86.5±10g per piece, small package: 96.7g per piece, medium carton: 6.7kg per carton, large carton: 27.7kg per carton
Packaging

Medium carton: 66pcs per carton Large carton: 264pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Current
Output Power

Max.15W
Output Voltage

15-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input toOutput:3750Vac,5mA,60s
Insulation Resistance

Input toOutput:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
