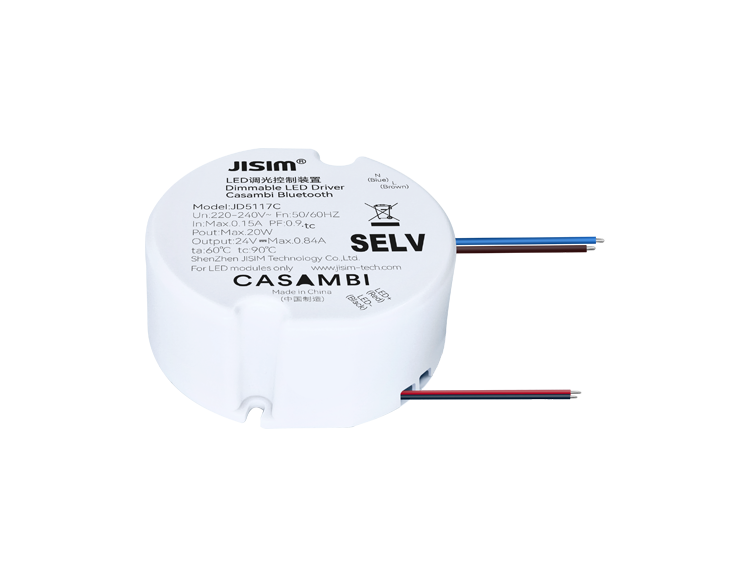

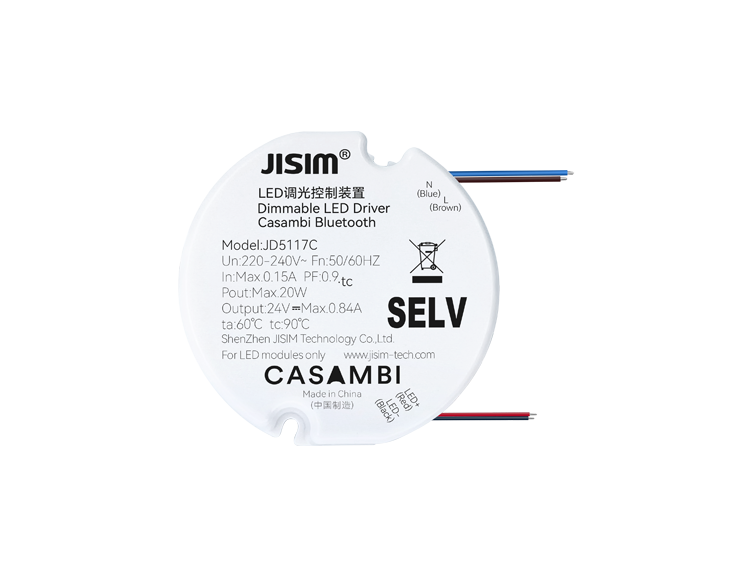

JD5117C CASAMBI Bluetooth 20W 0.84A 220-240VAC

Compact design fits modern decorative lamps including wall lamps, table lamps and pendant lamps
Built-in driver equipped with external Ipex antenna
Dimmable constant voltage driver with high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with excellent networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range: 1%~100%, with built-in soft start function
Supports Casambi App control
Output short-circuit, open-circuit and overload protection
Complies with safety extra-low voltage standards
Input and output adopt lead wire terminals
Ambient temperature: -20℃~+60℃, maximum housing temperature: 90℃
Internal glue encapsulation strengthens protection for lamps requiring waterproof and moisture-proof performance
Applicable to Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD5117C
Rated Voltage

220-240Vac
Output Current

0.84A
Product Dimension

55*53*23mm
Dimming Mode

Casambi Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 82.4±10g per piece, small package: 94.1g per piece, medium carton: 6.5kg per carton, large carton: 26.9kg per carton
Packaging

Medium carton: 66pcs per carton Large carton: 264pcs per carton
Output Channel

DIM
IP Rating

IP20
Working Mode

Constant Voltage
Output Power

Max.20W
Output Voltage

24V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
