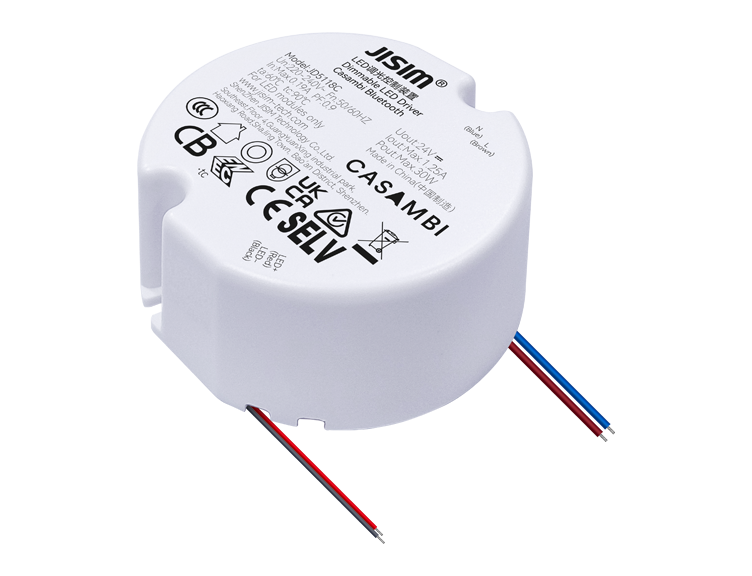

Casambi Bluetooth Built-in CV Series

Compact design suitable for modern decorative lamps including wall lamps, table lamps and pendant lamps
Built-in driver with external IPEX antenna
Dimmable constant voltage driver with high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with powerful networking capability
High-performance smooth dimming, flicker-free and noise-free
Dimming range: 1% to 100%, with built-in soft start function
Compatible with Casambi App control
Output short-circuit, open-circuit and overload protection
Compliant with SELV (Safety Extra Low Voltage) standards
Leaded terminals for input and output
Ambient temperature: -20℃ ~ +60℃; maximum case temperature: 90℃
Internally potted and sealed, offering enhanced protection for lamps requiring waterproof and moisture resistance
Applicable to Class I, II and III lamps
Protection Class II

Consult Now Buy Now

Dimming Mode

Casambi Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net weight: 82.4±10g per piece; small package: 94.1g per piece; medium carton: 6.51kg per carton; large carton: 26.9kg per carton (Refer to specification sheet for details)
Package

Medium carton: 66pcs/52pcs per carton Large carton: 264pcs/208pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
