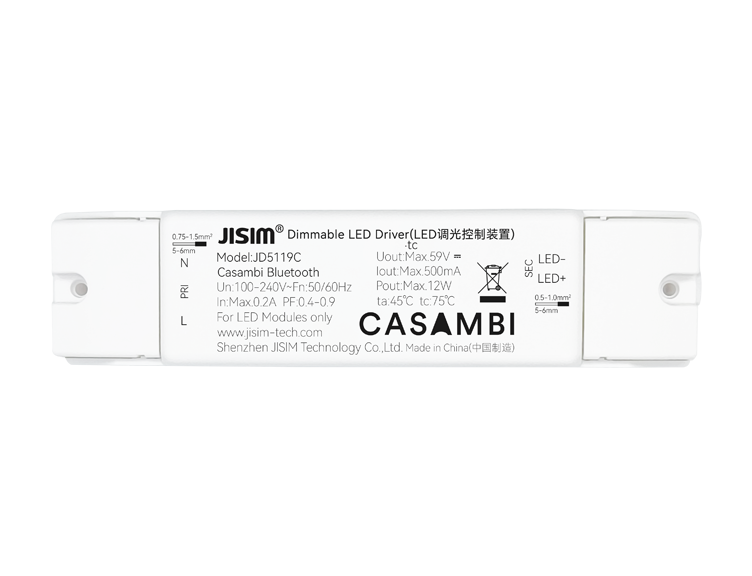

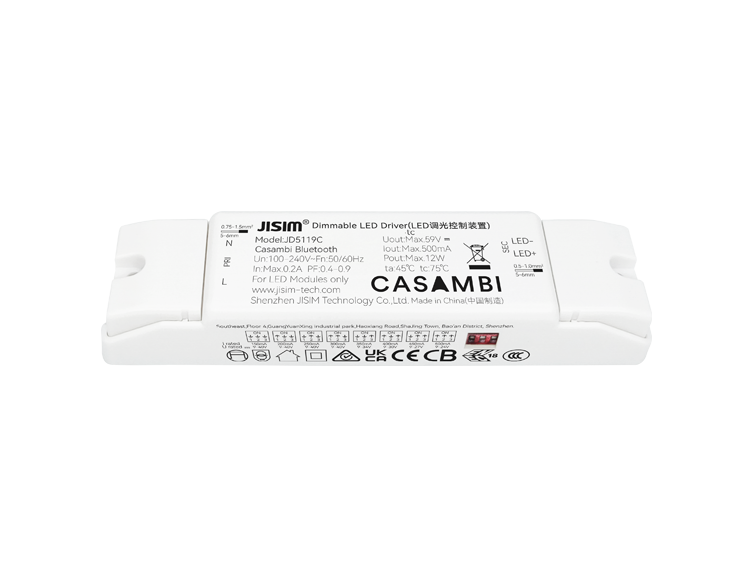

JD5119C Casambi Bluetooth 12W 150-500mA 100-240VAC DIP

Compact design: Suitable for small cutout downlights, spotlights and linear lights
Dimmable constant current driver: Input 100-240V AC, high power factor, high efficiency and long service life
Bluetooth communication: Developed based on Casambi platform with strong networking capacity
Smooth high-performance dimming: Flicker-free and no noise
Dimming range: 0.1%~100%, built-in soft start function
Control: Compatible with Casambi App
Current setting: Output current adjustable via DIP switches
Protections: Output short-circuit, open-circuit and overload protection
Standard: Compliant with safety extra-low voltage requirements
Terminals: Screw locking terminals for input and output
Operating temperature: Ambient temperature -20℃~+45℃; maximum case temperature 75℃
Applicable luminaires: Class I, II, III lamps
Protection class: Class II

Consult Now Buy Now

Model Number

JD5119C
Rated Voltage

100-240Vac
Output Current

100-500mA
Product Dimension

126*30*20mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 65.7±10g per piece, small package: 76.1g per piece, medium carton: 6.38kg per carton, large carton: 26.45kg per carton
Packaging

Medium carton: 80pcs per carton Large carton: 320pcs per carton
Output Channel

DIM
IP Rating

IP20
Working Mode

Constant Current
Output Power

Max.12W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
