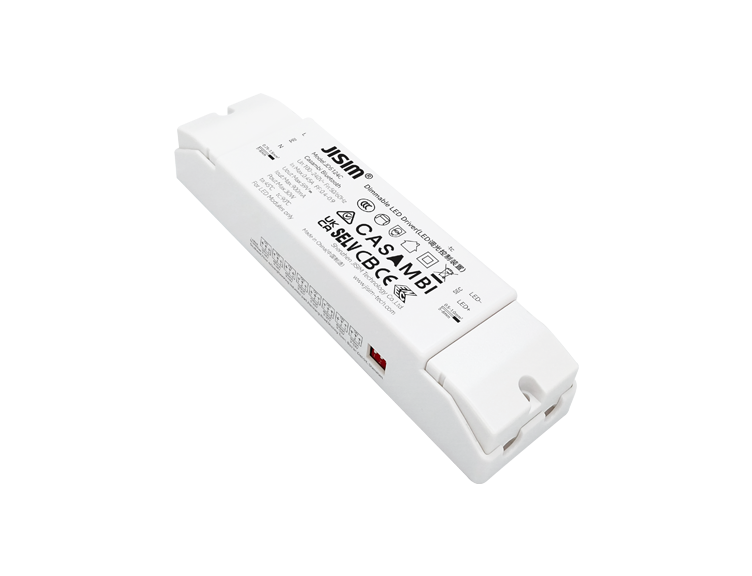

Casambi Bluetooth Independent CC Series

Compact design, suitable for small cutout downlights, spotlights and linear lights
Dimmable constant current driver with 100-240V AC input, high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with strong networking capacity
High-performance smooth dimming, flicker-free and noise-free
Dimming range: 0.1% to 100%, built-in soft start function
Controllable through Casambi App
Output current selectable by DIP switches
Output short-circuit, open-circuit and overload protection
Compliant with SELV (Safety Extra Low Voltage) standards
Screw-locked terminals for input and output wiring
Ambient temperature: -20℃ ~ +45℃; maximum case temperature: 75/80/90℃
Applicable to Class I, II and III lamps
Protection Class II

Consult Now Buy Now

Dimming Mode

Casambi Bluetooth
Dimming Range

01-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 65.7±10g/pc, small package:76.1g/pc, medium carton:6.38kg/carton, large carton:26.45kg/carton (See specification sheet for details)
Package

Medium carton: 80pcs/48pcs/30pcs per carton Large carton: 320pcs/192pcs/120pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

75/80/90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
