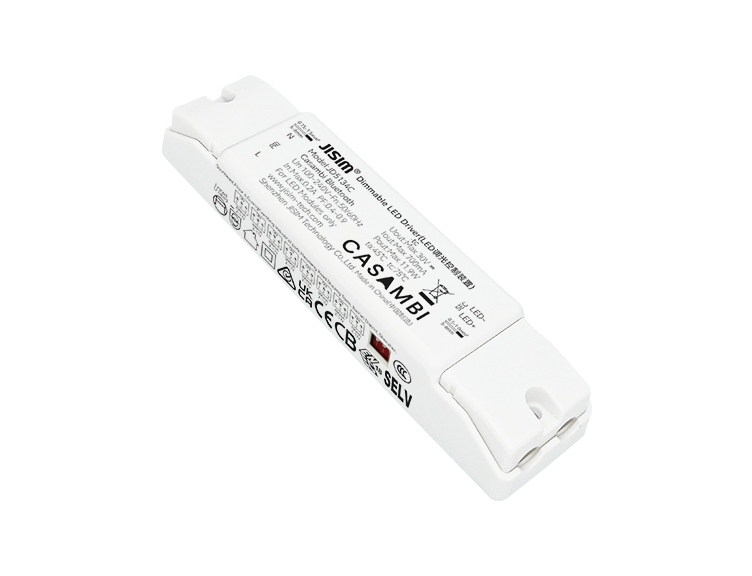

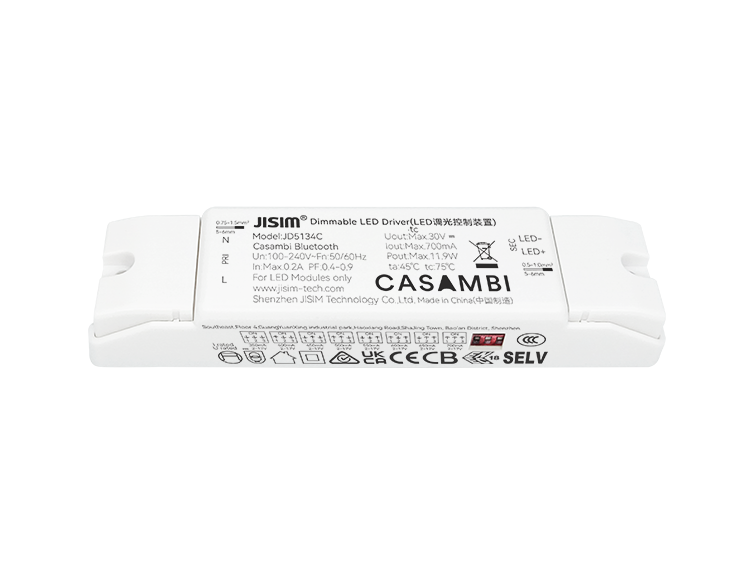

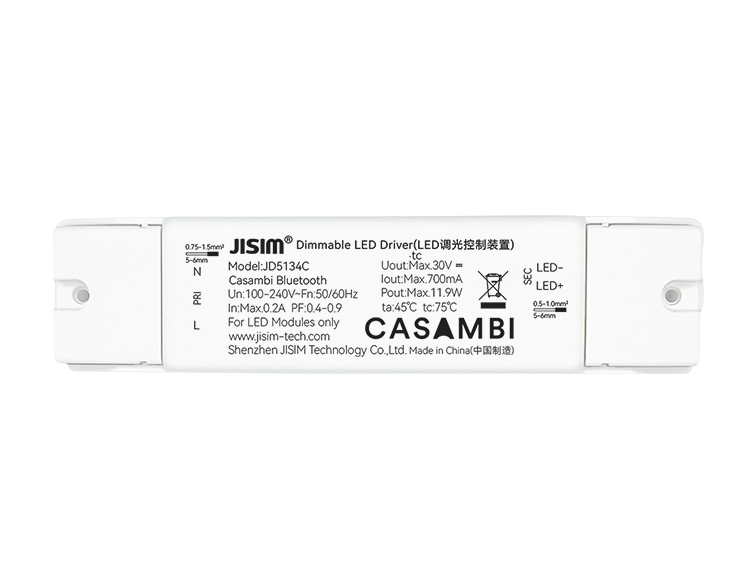

JD5134C Casambi Bluetooth 11.9W 350-700mA 100-240VAC DIP

Compact design suitable for small cutout downlights, spotlights and linear lights
Dimmable constant current driver, 100-240V AC input, high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with powerful networking performance
Smooth high-performance dimming, flicker-free and silent operation
Dimming range: 0.1%~100%, built-in soft start function
Casambi App control supported
Output current selectable via DIP switches
Output short-circuit, open-circuit and overload protection
Meets safety extra-low voltage standards
Screw locking terminals for input and output wiring
Ambient temperature: -20℃~+45℃; maximum case temperature: 75/80/90℃
Applicable to Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD5134C
Rated Voltage

100-240Vac
Output Current

350-700mA
Product Dimension

126*30*20mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 67.9±10g per piece, small package:79.4g per piece, medium carton:6.65kg per carton, large carton:27.5kg per carton
Packaging

Medium carton: 80pcs per carton Large carton: 320pcs per carton
Output Channel

DIM
IP Rating

IP20
Working Mode

Constand Current
Output Power

Max.11.9W
Output Voltage

2-17V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input toOutput:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

standalone
Warranty

5 years
