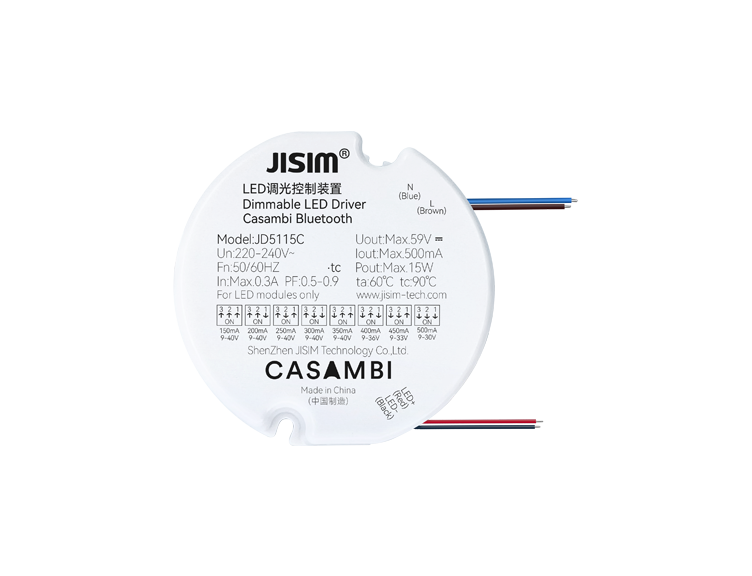

JD5115C CASAMBI Bluetooth 15W 150-500mA 220-240VAC DIP

Compact design applicable to surface mounted downlights, spotlights, track lights and wall lamps
Built-in driver with external IPEX antenna
Dimmable constant current driver featuring high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range: 0.1%~100%, equipped with built-in soft start function
Supports Casambi App control

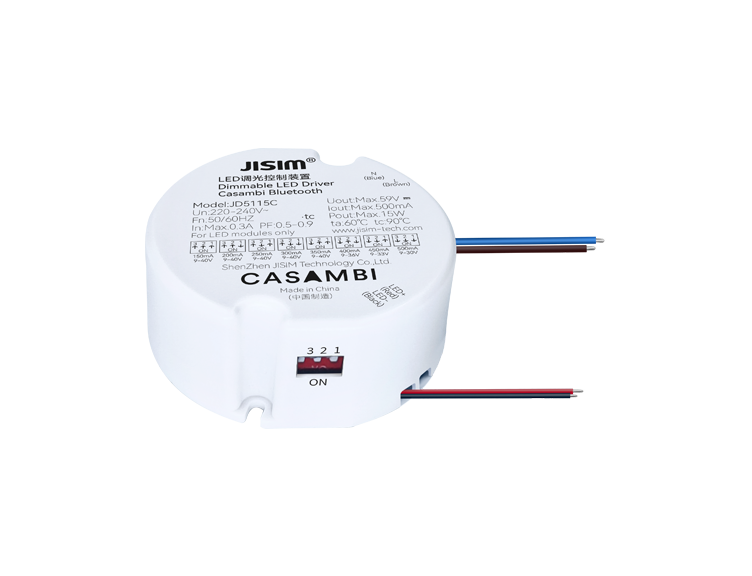

Output current adjustable via DIP switches
Output short-circuit, open-circuit and overload protection
Complies with safety extra-low voltage standards
Input and output adopt lead wire terminals
Ambient temperature: -20℃~+60℃; maximum housing temperature: 90℃
Internal glue potting enhances protection for lamps requiring waterproof and moisture-proof performance
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD5115C
Rated Voltage

220-240Vac
Output Current

150-500mA
Product Dimension

55*53*23mm
Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 82.4±10g per piece, small package: 94.1g per piece, medium carton: 6.5kg per carton, large carton: 26.9kg per carton
Packaging

Medium carton: 66pcs per carton Large carton: 264pcs per carton
Output Channel

DIM
IP Rating

IP20
Working Mode

Constant Current
Output Power

Max.15W
Output Voltage

9-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input toOutput:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
