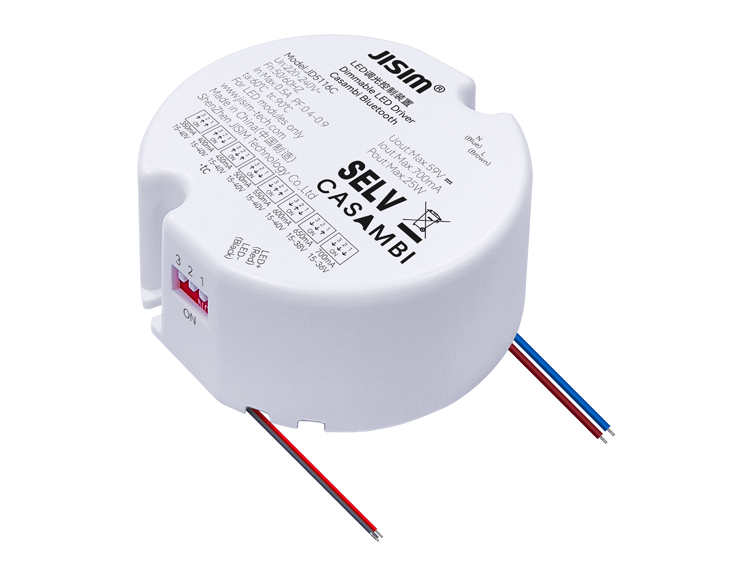

Casambi Built-in Bluetooth CC Series

Compact design, suitable for surface mount downlights, spotlights, track lights and wall lamps
Adopts built-in driver with external IPEX antenna
Dimmable constant current driver featuring high power factor, high efficiency and long service life
Bluetooth communication developed based on Casambi platform with strong networking capability
High-performance smooth dimming, flicker-free and no noise
Dimming range: 0.1% to 100%, equipped with soft start function
Controllable via Casambi App
Output current selectable via DIP switches
Protection against output short circuit, open circuit and overload
Compliant with SELV (Safety Extra Low Voltage) standards
Leaded design for input and output terminals
Ambient temperature range: -20℃ ~ +60℃; maximum case temperature: 90℃
Internally potted and sealed to deliver enhanced protection for lamps requiring waterproof and moisture-proof performance
Applicable to Class I, II and III lamps
Protection Class II

Consult Now Buy Now

Dimming Mode

Casambi Bluetooth
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net weight: 82.4±10g per piece; small package: 94.1g per piece; medium carton: 6.5kg per carton; large carton: 26.9kg per carton (refer to specification for details)
Package

Medium carton: 66pcs/52pcs per carton Large carton: 264pcs/208pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
