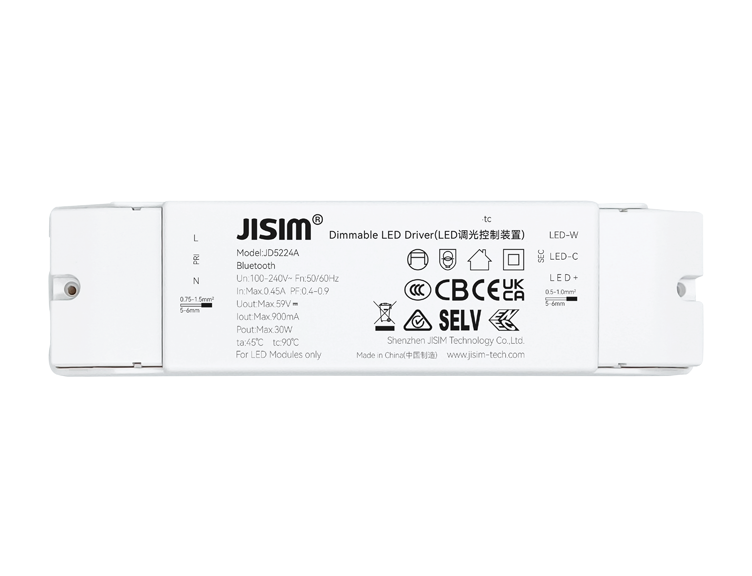

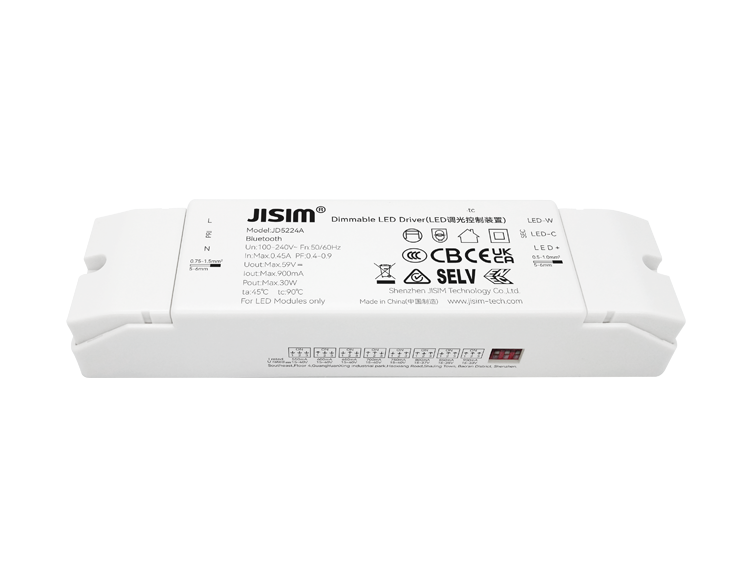

JD5224A Bluetooth 30W 550-900mA 100-240VAC DIP

Compact design,suitable for small‑aperture downlight&spotlight,linear light
Dimmable color‑tunable CC driver,high power factor,high efficiency,long service life
Bluetooth communication,developed on Mijia platform,strong networking capability
Smooth high‑performance dimming,flicker‑free and noise‑free
Dimming range 0.5…100%,with soft‑start function
Connected to Mijia App,supports Xiao‑ai voice control and Xiaomi HyperConnect
Select output current via DIP switch
Output short‑circuit,open‑circuit and overload protection
Complies with SELV standard
Input and output screw‑locking terminals
Ambient temperature‑20～+45℃,Maximum case temperature 90℃
Suitable for Class ⅠⅡⅢ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD5224A
Rated Voltage

100-240Vac
Output Current

550-900mA
Product Dimension

165*42*30mm
Dimming Mode

Mijia Bluetooth
Dimming Range

0.5-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:189.8±10g/pcs,Small Pack:206.6g/pcs,Inner Pack:6.5kg/carton,Outer Pack:26.9kg/carton
Packaging

Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.30W
Output Voltage

15-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
