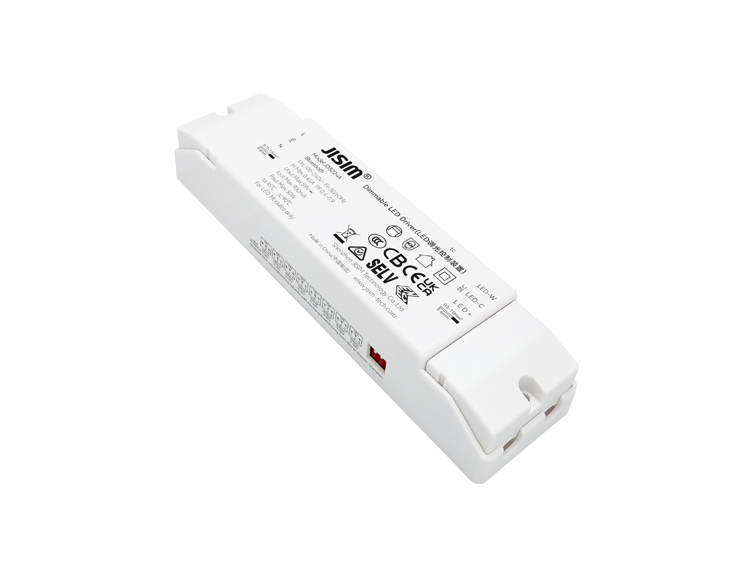

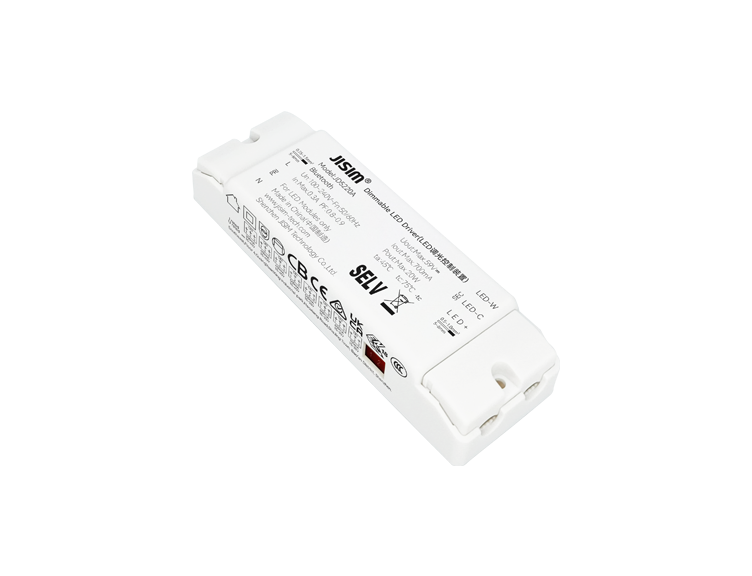

Bluetooth Independent CC CCT Tunable Series

Compact design, suitable for small cutout downlights & spotlights, linear lights
Dimmable CCT tunable CC driver, high power factor, high efficiency and long service life
Bluetooth communication, developed based on MiJia platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 0.5…100%, built-in soft start function
Integrated with MiJia App, supports Xiao Ai control and Xiaomi HyperConnect
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Complies with safety extra-low voltage standard
Screw-locked terminals for input and output
Ambient temperature -20～+45℃, maximum case temperature 75/80/90℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 65.7±10g/pcs, Small Pack: 76.1g/pcs, Inner Pack: 6.39kg/carton, Outer Pack: 26.45kg/carton (See datasheet for details)
Package

Inner Pack:80pcs/48pcs/30pcs/carton, Outer Pack:320pcs/192pcs/120pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

75/80/90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
