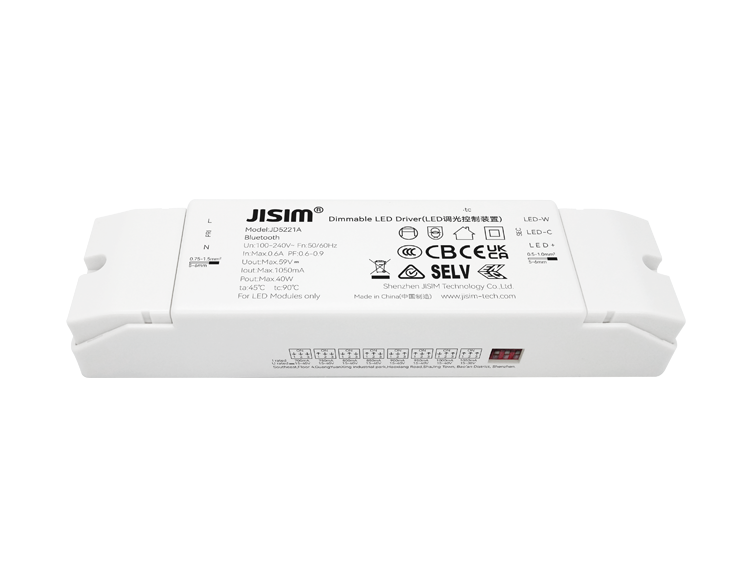

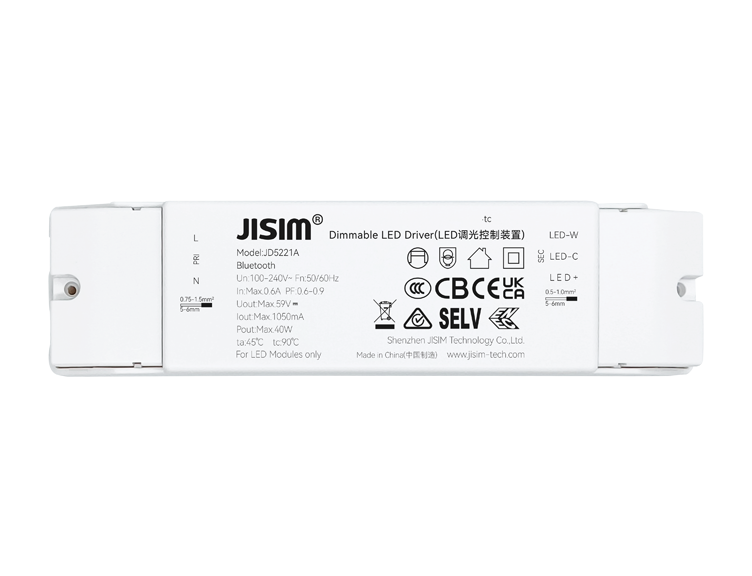

JD5221A Bluetooth 40W 750-1050mA 100-240VAC DIP

Compact design,suitable for small cut‑out downlights and spotlights,linear lights
Dimmable and color‑tunable constant‑current driver,high power factor,high efficiency,long service life
Bluetooth communication,developed based on Mi Home platform,strong networking capability
Smooth high‑performance dimming,flicker‑free,noise‑free
Dimming range 0.5…100%,built‑in soft‑start function
Connected to Mi Home App,support voice control by Xiaoai,support Xiaomi HyperConnect
Select output current via dip switch
Output short‑circuit,open‑circuit and overload protection
Comply with safety extra‑low‑voltage standard
Screw‑locking terminals for input and output
Ambient temperature ‑20～+45℃,maximum case temperature 90℃
Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD5221A
Rated Voltage

100-240Vac
Output Current

750-1050mA
Product Dimension

165*42*30mm
Dimming Mode

Bluetooth
Dimming Range

0.5-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:190.5±10g/pcs,Small Pack:207.3g/pcs,Inner Pack:6.5kg/carton,Outer Pack:26.98kg/carton
Packaging

Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.40W
Output Voltage

15-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
