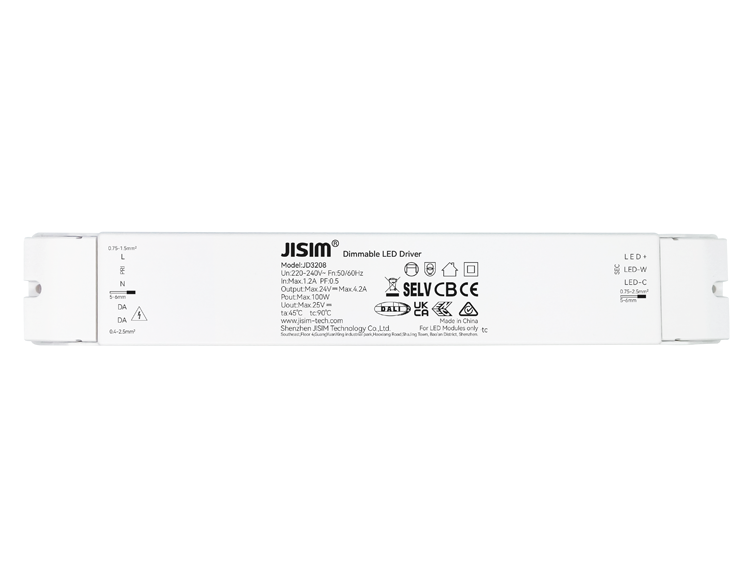

JD3208 DALI DT8 100W 4.2A 220-240VAC DIP

External design, suitable for LED strip, ribbon light, linear light, light film, magnetic track light, decorative light
Dimmable and color‑tunable constant‑voltage driver, high efficiency, long service life
Supports DALI‑2 DT8 dimming and color‑temperature tuning
Built‑in MCU, unique dimming algorithm, flicker‑free, noise‑free
Smooth high‑performance dimming, compatible with more DALI masters
Dimming range: 1…100%, built‑in soft‑start function
Output short‑circuit, open‑circuit and overload protection
Isolated dimming port, output complies with extra‑low safety voltage standard
Screw‑locking terminal blocks for input and output
Ambient temperature: -20～+45℃, maximum case temperature: 90℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD3208
Rated Voltage

220-240Vac
Output Current

4.2A
Product Dimension

265*42*30mm
Dimming Mode

DALI DT8
Dimming Range

1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 278.3±10g/pcs, Small‑pack: 302.9g/pcs, Middle carton: 4.84kg/case, Big carton: 20.27kg/case
Packaging

Middle carton: 15pcs/case, Big carton: 60pcs/case
Output Channel

CCT
IP Rating

IP20
Working Mode

CV
Output Power

Max.100W
Output Voltage

24V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MΩ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
