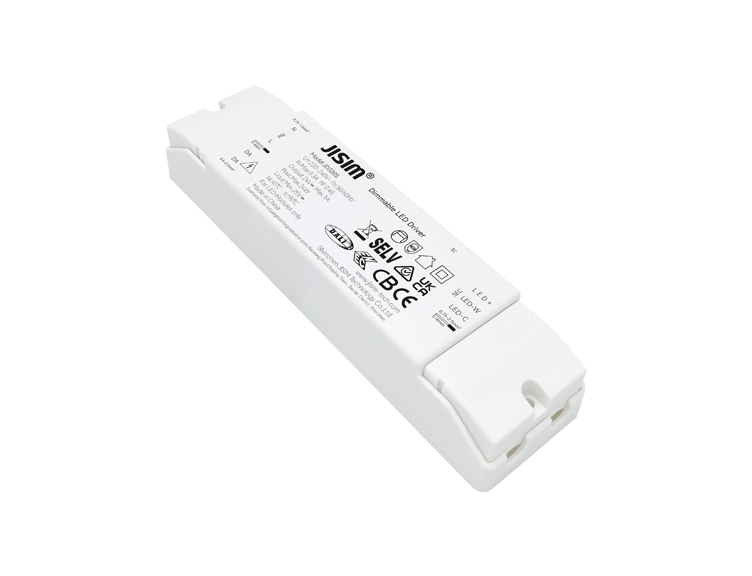

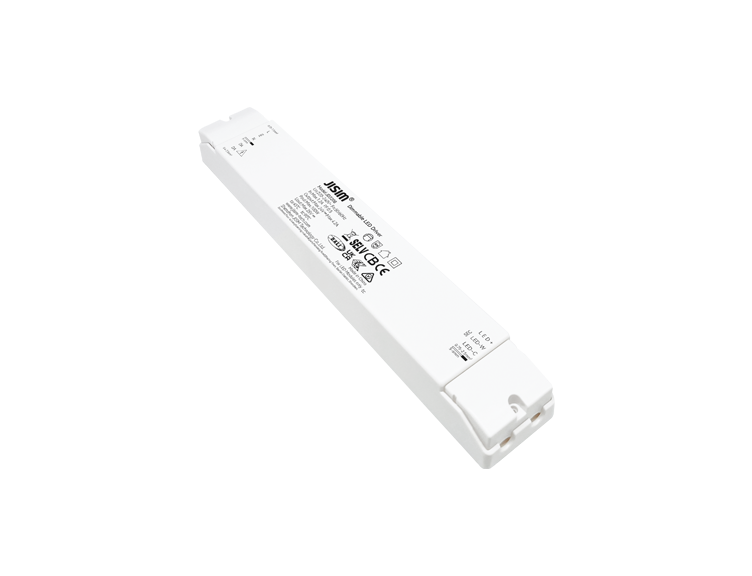

DALI-2+PushDim DT8 Independent CV Series

Independent design, suitable for LED strips, LED bars, linear lights, light films, magnetic track lights and decorative lights.
Dimmable & CCT tunable CV driver, high efficiency, long lifespan.
Supports DALI-2 DT8 dimming & CCT tuning.
Built-in MCU, unique dimming algorithm, flicker-free, noise-free.
Smooth high-performance dimming, compatible with more DALI masters.
Dimming range 1...100%, with built-in soft start function.
Output short circuit, open circuit and overload protection.
Dimming port isolated, output complies with SELV (Safety Extra Low Voltage) standard.
Input and output screw terminal blocks.
Ambient temperature -20 to +45°C, maximum enclosure temperature 90°C.
Suitable for Class I, II and III luminaires.
Protection Class II.

Consult Now Buy Now

Dimming Mode

DALI DT8
Dimming Range

1-100%
Protection

Output short circuit, open circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 156.6±10g/pcs, Small Pack: 173.4g/pcs, Middle Carton: 5.5kg/carton, Master Carton: 21.72kg/carton (See specification sheet for details)
Package

Middle Carton: 30/15 pcs/carton, Master Carton: 120/60 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
