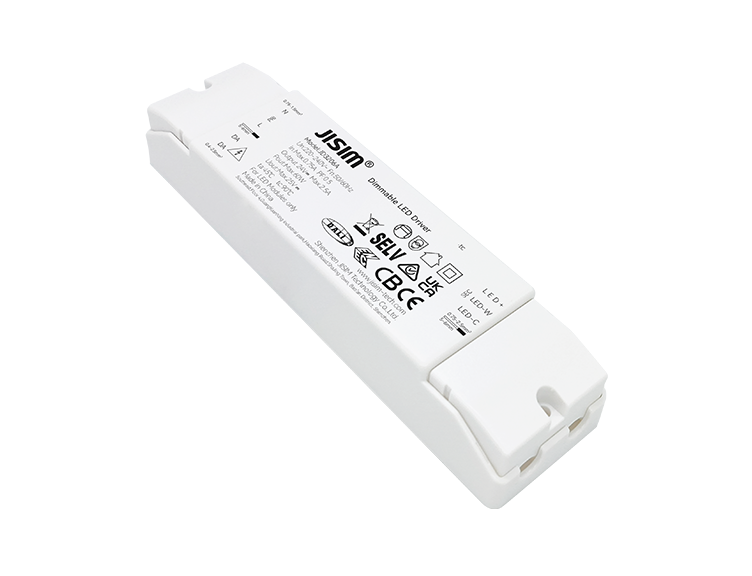

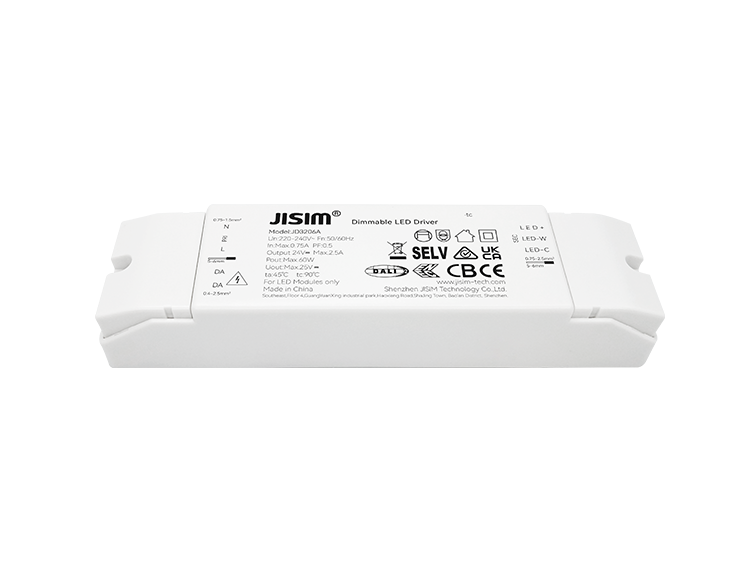

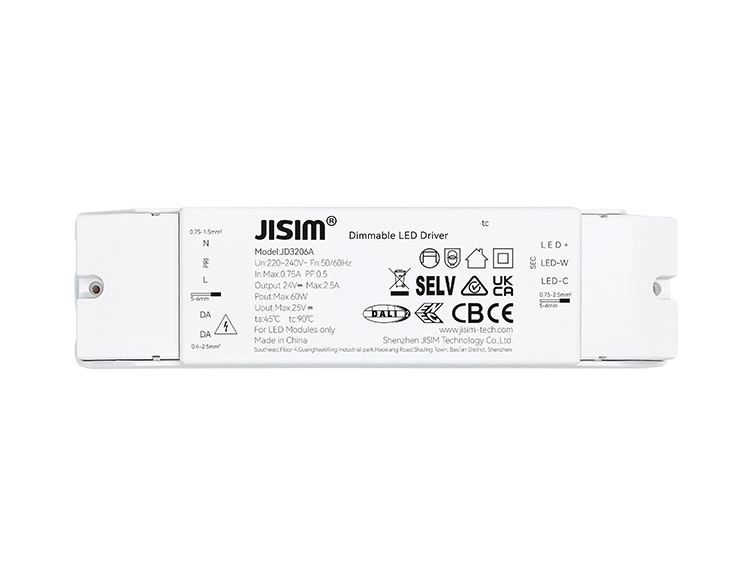

JD3206A DALI DT8 60W 2.5A 220-240VAC DIP

Independent design,suitable for LED strip,ribbon light,linear light,light film,magnetic‑track light,decorative light
Dimmable and color‑tunable CV driver,high efficiency,long service life
Supports DALI‑2 DT8 dimming and color tuning
Built‑in MCU,unique dimming algorithm,flicker‑free and noise‑free
Smooth high‑performance dimming,compatible with more DALI masters
Dimming range 1…100%,with soft‑start function
Output short‑circuit,open‑circuit and overload protection
Dimming port isolation,output complies with SELV standard
Input and output screw‑locking terminals
Ambient temperature‑20～+45℃,Maximum case temperature 90℃
Suitable for Class ⅠⅡⅢ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD3206A
Rated Voltage

220-240Vac
Output Current

2.5A
Product Dimension

165*42*30mm
Dimming Mode

DALI DT8
Dimming Range

1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:184.9±10g/pcs,Small Pack:201.4g/pcs,Inner Pack:6.34kg/carton,Outer Pack:26.27kg/carton
Packaging

Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CV
Output Power

Max.60W
Output Voltage

24V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
