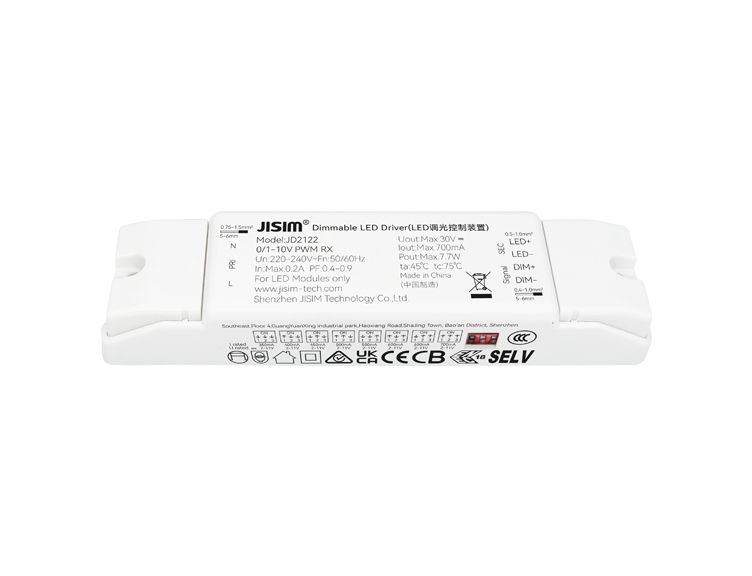

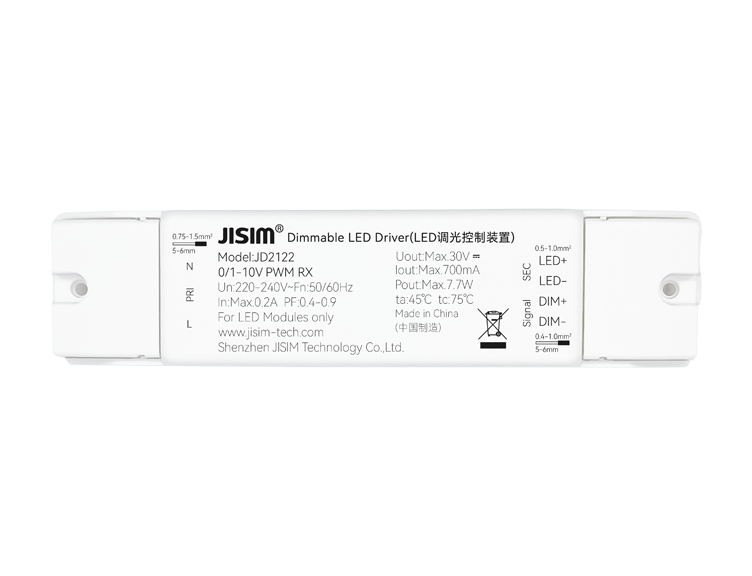

JD2122 0/1-10V 7.7W 350-700mA 220-240VAC DIP
HomeProduct0/1-10V PWM RX

JD2122 0/1-10V 7.7W 350-700mA 220-240VAC DIP

Product Features

  • Compact design, suitable for small cut‑out downlight&spotlight, linear lamp
  • Dimmable CC driver, high power factor, high efficiency and long service life
  • Suitable for 0‑10V, 1‑10V, 10V PWM, 100K potentiometer dimming
  • Bipolar architecture design, flicker‑free, noise‑free
  • Smooth high‑performance dimming, compatible with more dimmers
  • Dimming range 1…100%
  • Select output current via DIP switch
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with SELV standard
  • Screw‑lock input and output terminals
  • Ambient temperature: -20～+45℃, maximum enclosure temperature 75℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD2122
  • Rated Voltage
    220-240Vac
  • Output Current
    350-700mA
  • Product Dimension
    126*30*20mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:67±10g/pcs,Small Pack:78.2g/pcs,Inner Pack:6.56kg/carton,Outer Pack:27.1kg/carton
  • Packaging
    Inner Pack:80pcs/carton,Outer Pack:320pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.7.7W
  • Output Voltage
    2-11V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    75℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta=45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
