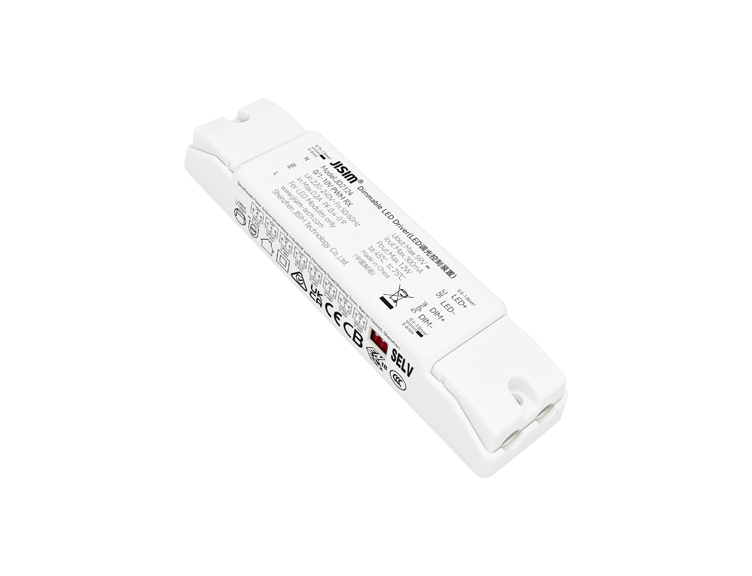

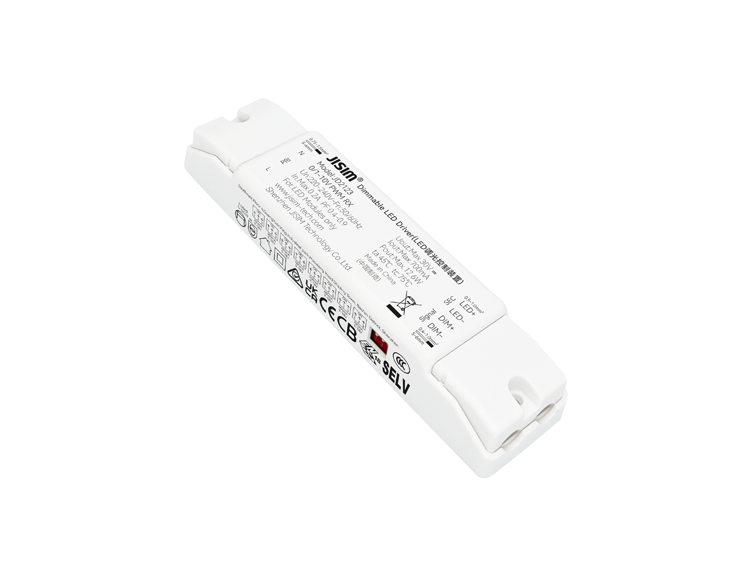

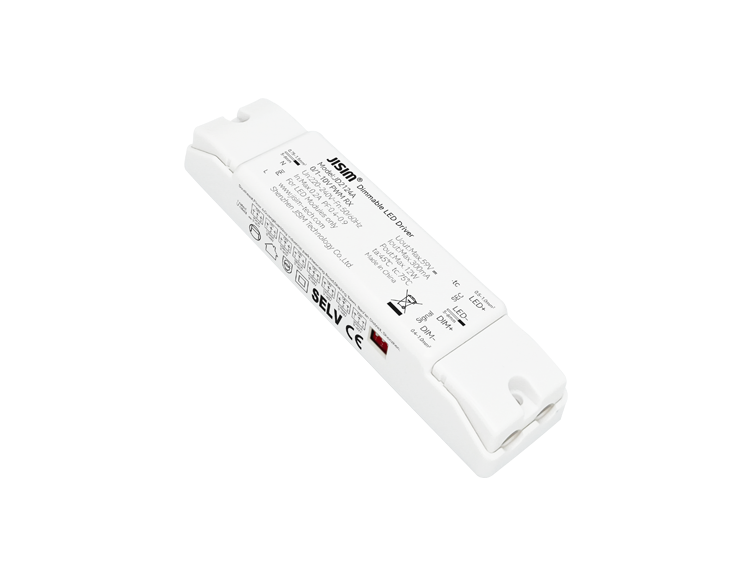

0/1-10V PWM RX Independent CC Series

Compact design, suitable for small cutout downlights & spotlights and linear lights.
Dimmable CC driver, high power factor, high efficiency, long lifespan.
Compatible with 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming.
Dual-stage architecture design, flicker-free, noise-free.
Smooth high-performance dimming, compatible with more dimmers.
Dimming range 1...100%.
Output current selectable via DIP switch.
Output short circuit, open circuit and overload protection.
Complies with SELV (Safety Extra Low Voltage) standard.
Input and output screw terminal blocks.
Ambient temperature -20 to +45°C, maximum enclosure temperature 75°C.
Suitable for Class I, II and III luminaires.
Protection Class II.

Consult Now Buy Now

Dimming Mode

0-10V PWM RX
Dimming Range

1-100%
Protection

Output short circuit, open circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 61±10g/pcs, Small Pack: 72g/pcs, Middle Carton: 6kg/carton, Master Carton: 24.75kg/carton (See specification sheet for details)
Package

Middle Carton: 80 pcs/carton, Master Carton: 320 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta=45℃
