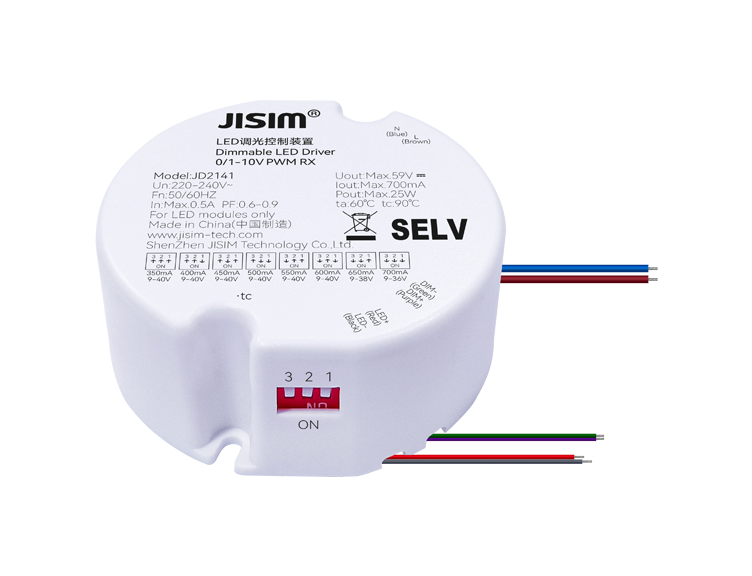

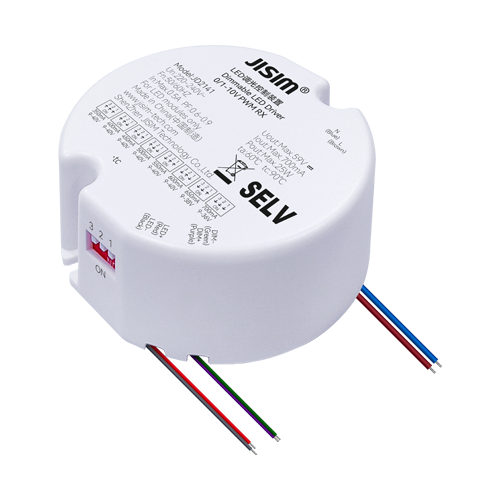

JD2141 0/1-10V 25W 350-700mA 220-240VAC DIP

Compact design,suitable for surface‑mount downlights,spotlights,track lights,wall lights
Built‑in driver application
Dimmable constant‑current driver,high power factor,high efficiency,long service life
Compatible with 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
Flicker‑free,noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 0.1…100%,built‑in soft‑start function
Select output current via dip switch
Output short‑circuit,open‑circuit and overload protection
Isolated dimming port,output complies with safety extra‑low‑voltage standard
Lead‑type input and output terminals
Ambient temperature ‑20～+60℃,maximum case temperature 90℃
Internally potted and sealed,enhanced protection for lamps requiring waterproof and moisture‑proof performance
Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD2141
Rated Voltage

220-240Vac
Output Current

350-700mA

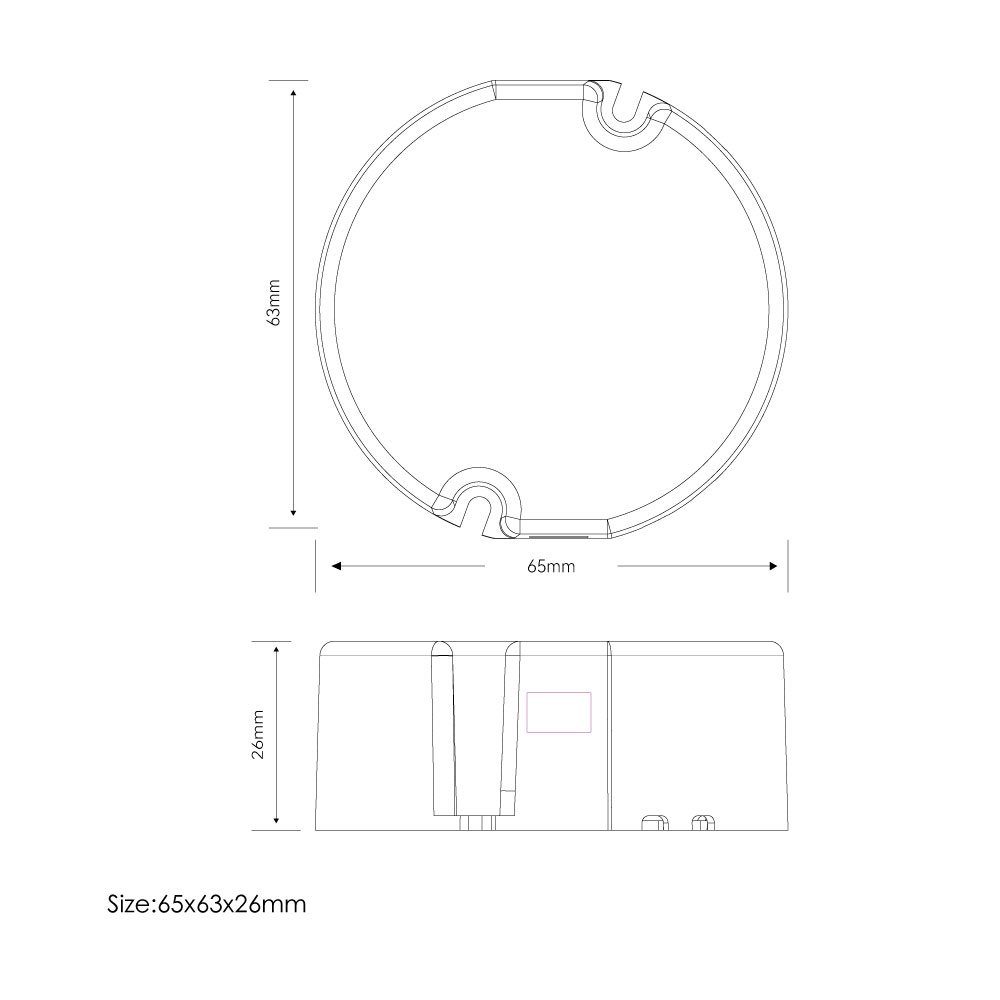

Product Dimension

65*63*26mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:128.3±10g/pcs,Small Pack:140.3g/pcs,Inner Pack:7.6kg/carton,Outer Pack:31.3kg/carton
Packaging

Inner Pack:52pcs/carton,Outer Pack:208pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

0-10V PWM RX
Output Power

25W
Output Voltage

9-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s,输入对信号接口:1500Vac,5mA,60s,输出对信号接口:1500Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta=45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
