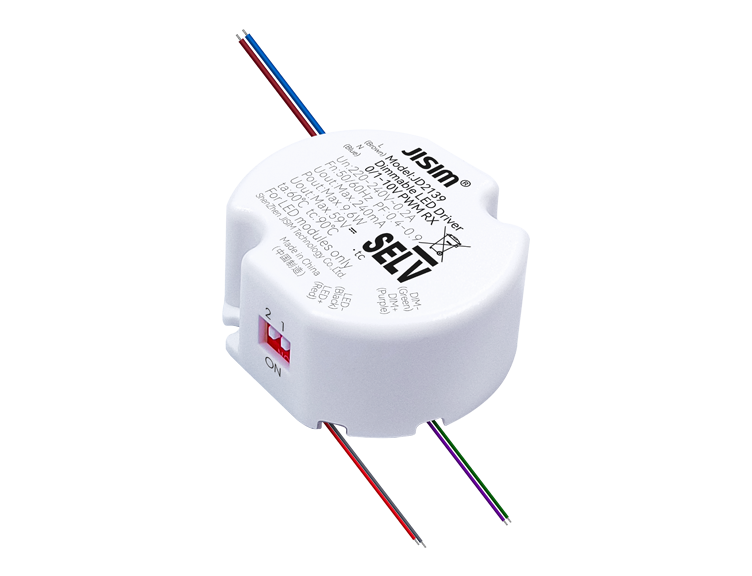

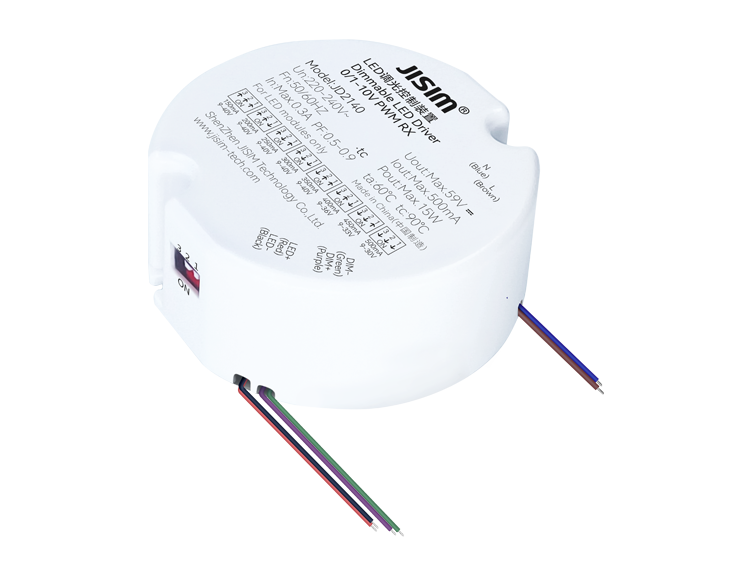

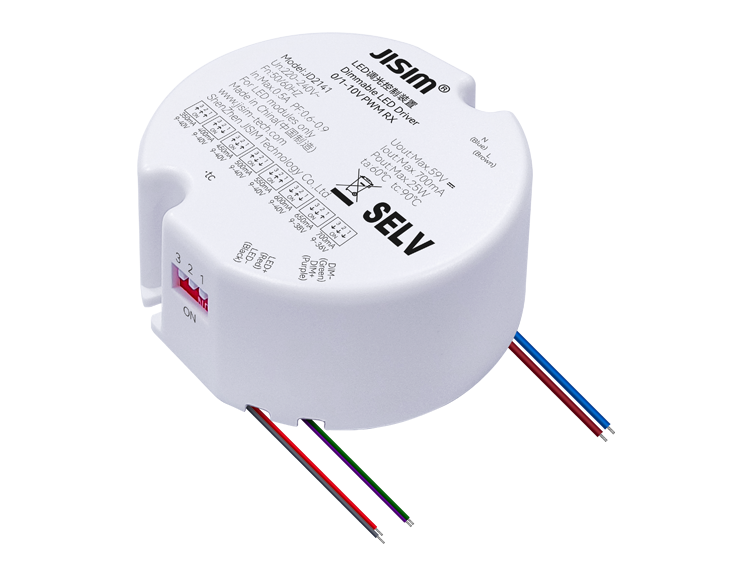

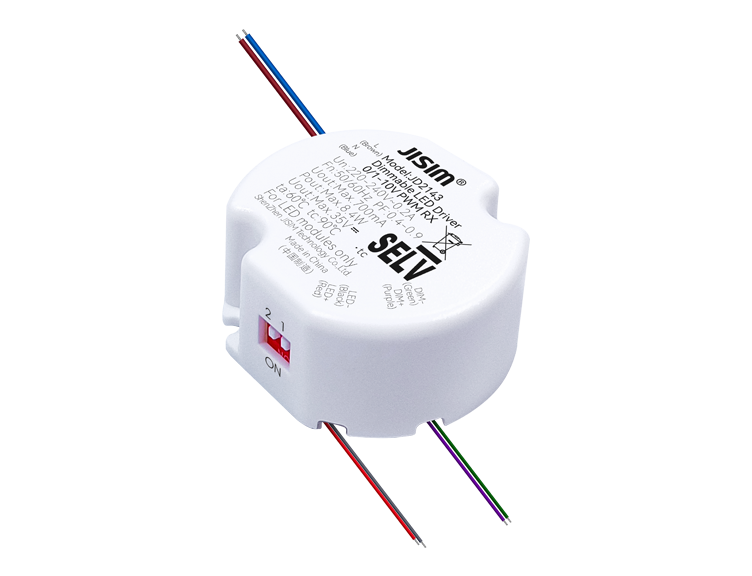

0/1-10V PWM RX Built-in CC Series

Compact design, suitable for surface mounted downlights, spotlights, track lights and wall lights.
Built-in driver application.
Dimmable constant current driver, high power factor, high efficiency, long lifespan.
Compatible with 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming.
Flicker-free, noise-free.
Smooth high-performance dimming, compatible with more dimmers.
Dimming range 0.1...100%, with built-in soft start function.
Output current selectable via DIP switch.
Output short circuit, open circuit and overload protection.
Dimming port isolated, output complies with SELV (Safety Extra Low Voltage) standard.
Input and output lead wire type.
Ambient temperature -20 to +60°C, maximum enclosure temperature 90°C.
Internally potted and sealed, enhanced protection for luminaires with waterproof and moisture-proof requirements.
Suitable for Class I, II and III luminaires.
Protection Class II.

Consult Now Buy Now

Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 50.3±10g/pcs, Small Pack: 58.4g/pcs, Middle Carton: 6.6kg/carton, Master Carton: 27.3kg/carton (See specification sheet for details)
Package

Middle Carton: 108/64/48 pcs/carton, Master Carton: 432/256/192 pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output: 3750Vac, 5mA, 60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
