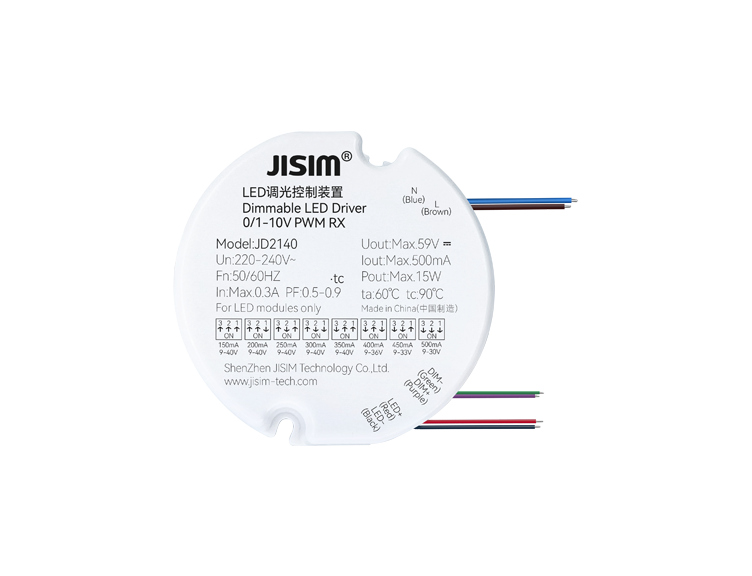

JD2140 0/1-10V 15W 150-500mA 220-240VAC DIP

Compact design,suitable for surface‑mounted downlight,spotlight,track light,wall light
Built‑in driver application
Dimmable constant‑current driver,high power factor,high efficiency,long service life
Compatible with 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
Flicker‑free and noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 0.1…100%,with soft‑start function

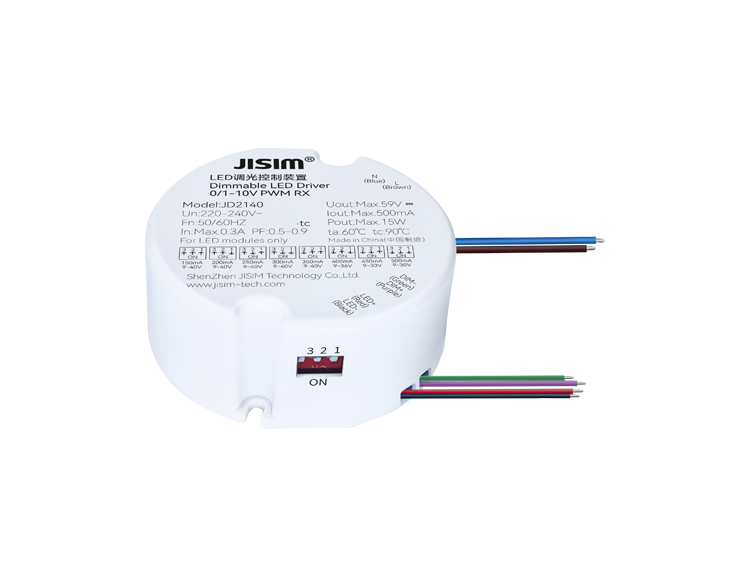

Select output current via DIP switch
Output short‑circuit,open‑circuit and overload protection
Dimming port isolation,output complies with SELV standard
Input and output lead‑wire type
Ambient temperature‑20～+60℃,maximum case temperature 90℃
Internal potting seal of product,enhanced protection for lamps requiring waterproof and moisture‑proof
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD2140
Rated Voltage

220-240Vac
Output Current

150-500mA

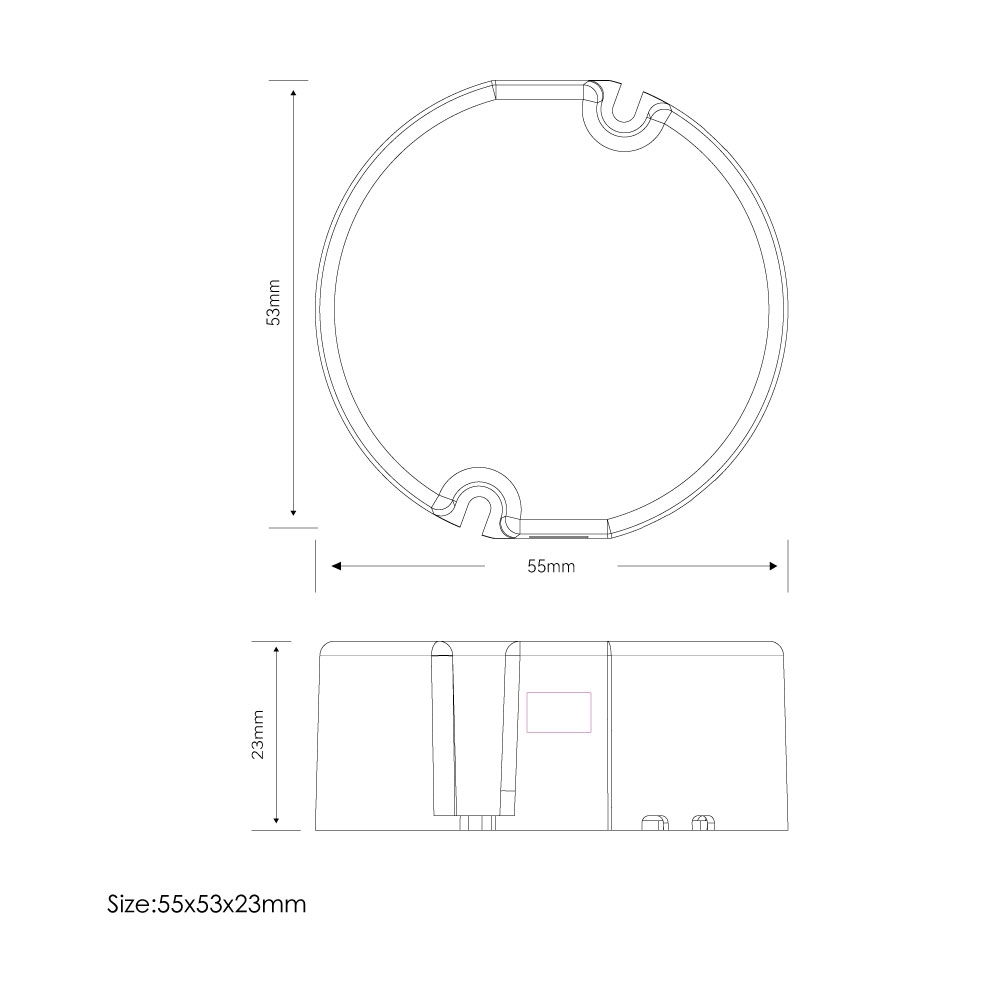

Product Dimension

55*53*23mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:85.3±10g/pcs,Small Pack:95.6g/pcs,Inner Pack:6.41kg/carton,Outer Pack:26.57kg/carton
Packaging

Inner Pack:64pcs/carton,Outer Pack:256pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.10W
Output Voltage

9-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s,输入对信号接口:1500Vac,5mA,60s,输出对信号接口:1500Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta=45℃
SELV

SELV 60V
Installation Method

Built‑in
Warranty

5 years
