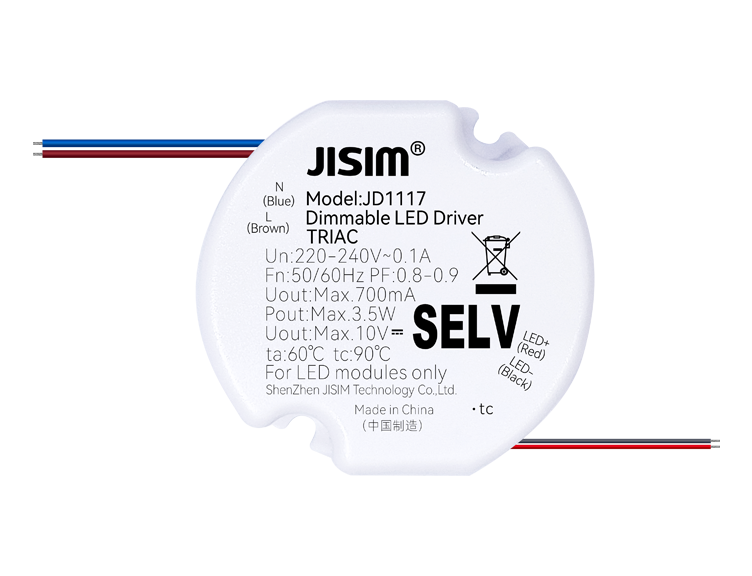

JD1117 Triac 3.5W 350-700mA 220-240VAC DIP
HomeProductTriac

JD1117 Triac 3.5W 350-700mA 220-240VAC DIP

Product Features

  • Compact design, suitable for surface‑mount downlight, spotlight, track light, wall lamp
  • Built‑in driver application
  • Dimmable CC driver, high power factor, high efficiency and long service life
  • Suitable for Triac leading‑edge or trailing‑edge phase‑cut dimmers
  • Flicker‑free, noise‑free
  • Smooth high‑performance dimming, compatible with more dimmers
  • Dimming range 1…100%

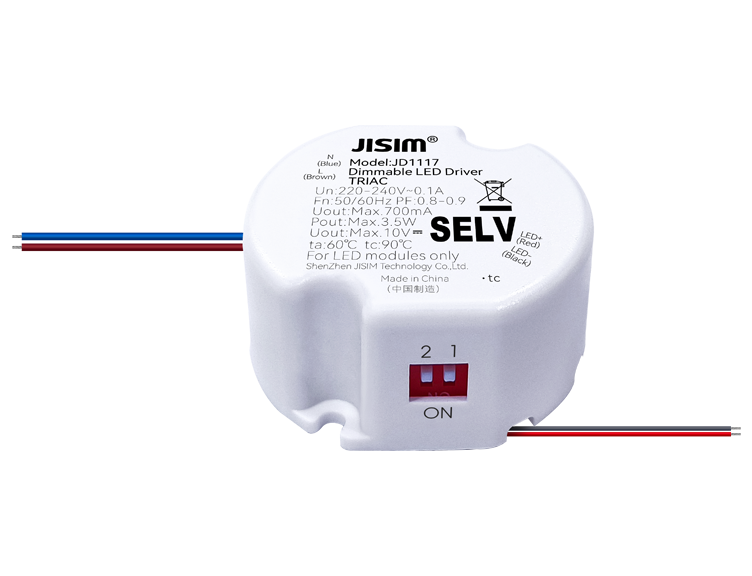

  • Select output current via DIP switch
  • Output open‑circuit and overload protection
  • Complies with SELV standard
  • Lead‑type input and output terminals
  • Ambient temperature: -20～+60℃, maximum enclosure temperature 90℃
  • Internal potting sealing of product, enhanced protection for lamps requiring water and moisture resistance
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD1117
  • Rated Voltage
    220-240Vac
  • Output Current
    350-700mA
  • Product Dimension
    42*39*20mm
  • Dimming Mode
    Triac
  • Dimming Range
    1-100%
  • Protection
    Output open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:49.2±10g/pcs,Small Pack:57.4g/pcs,Inner Pack:6.5kg/carton,Outer Pack:26.9kg/carton
  • Packaging
    Inner Pack:108pcs/carton,Outer Pack:432pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.3.5W
  • Output Voltage
    2-5V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    5000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Built‑in
  • Warranty
    5 years
