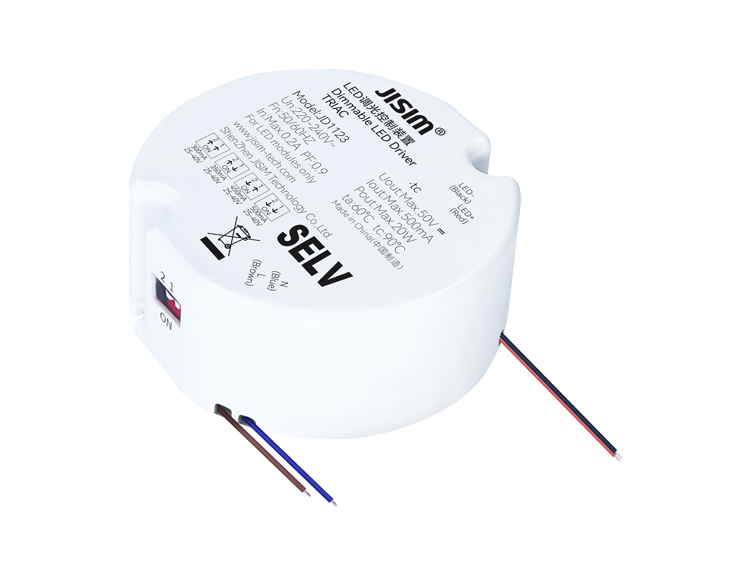

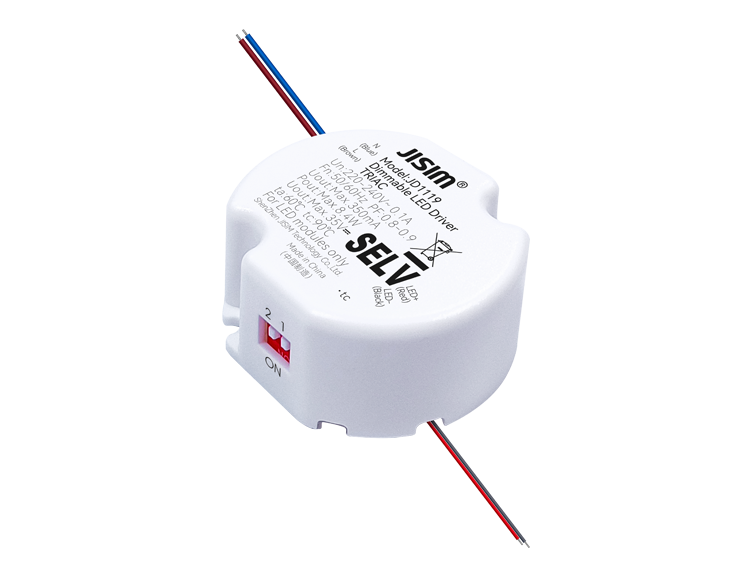

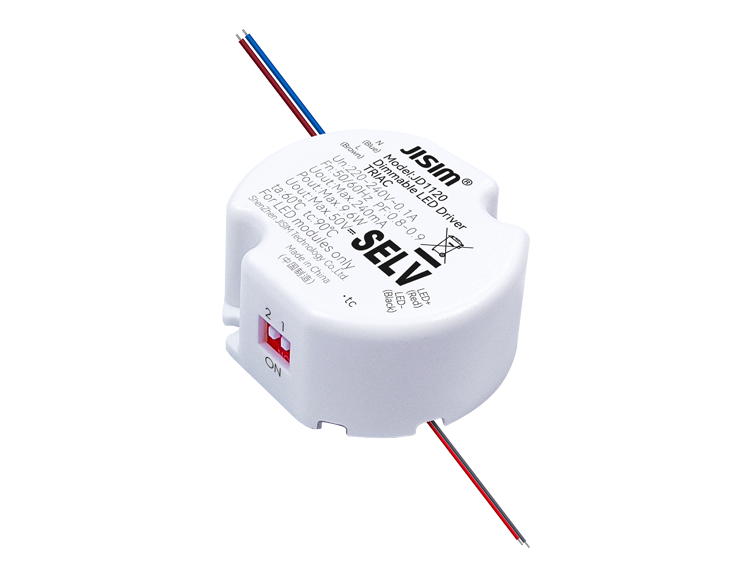

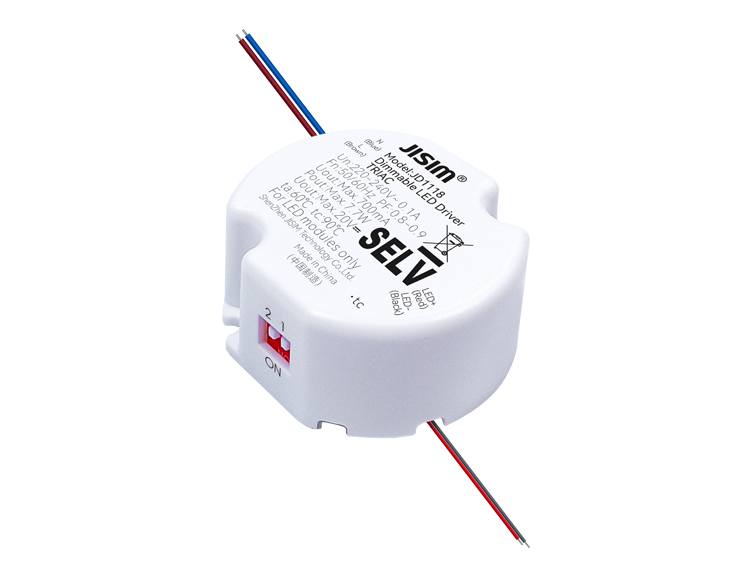

Triac Built-in CC Series

Compact design, suitable for surface-mounted downlights, spotlights, track lights and wall lights
Built-in driver application
Dimmable CC driver, high power factor, high efficiency and long service life
Compatible with Triac leading-edge or trailing-edge phase-cut dimmers
Flicker-free and noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 1…100%
Select output current via DIP switch
Output open-circuit and overload protection
Comply with safety extra-low voltage standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internal potting sealing, enhanced protection for luminaires requiring waterproof and moistureproof performance
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

Triac
Dimming Range

1-100%
Protection

Output open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 49.2±10g/pcs, Small Pack: 57.4g/pcs, Inner Pack: 6.5kg/carton, Outer Pack: 26.9kg/carton (See datasheet for details)
Package

Inner Pack: 108pcs/64pcs/52pcs/carton, Outer Pack: 432pcs/256pcs/208pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
