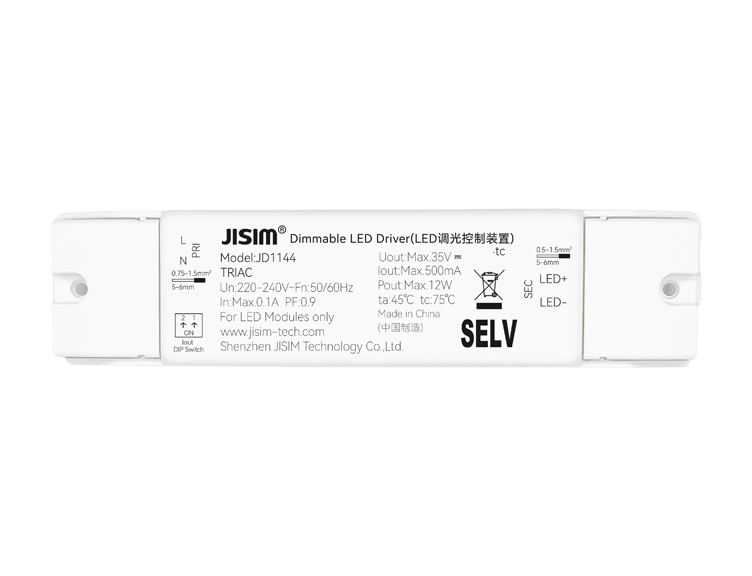

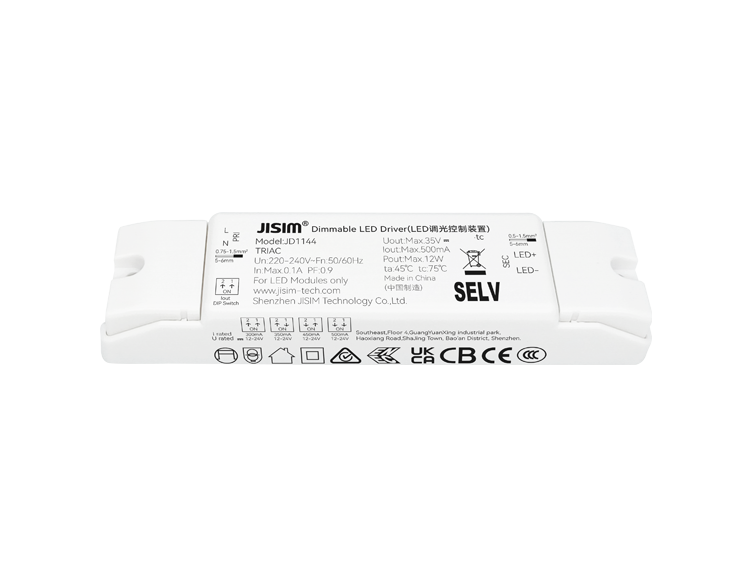

JD1144 Triac 12W 300-500mA 220-240VAC DIP
HomeProductTriac

JD1144 Triac 12W 300-500mA 220-240VAC DIP

Product Features

  • Compact design, suitable for small cut‑out downlight&spotlight, panel light, linear light
  • Dimmable CC driver, high power factor, high efficiency and long service life
  • Suitable for Triac leading‑edge or trailing‑edge phase‑cut dimmers
  • Flicker‑free, noise‑free
  • Smooth high‑performance dimming, compatible with more dimmers
  • Dimming range 1…100%
  • Select output current via DIP switch
  • Output open‑circuit and overload protection
  • Complies with SELV standard
  • Screw‑lock input and output terminals
  • Ambient temperature: -20～+45℃, maximum enclosure temperature 80℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD1144
  • Rated Voltage
    220-240Vac
  • Output Current
    300-500mA
  • Product Dimension
    126*30*20mm
  • Dimming Mode
    Triac
  • Dimming Range
    1-100%
  • Protection
    Output open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:68±10g/pcs,Small Pack:72.8g/pcs,Inner Pack:6.13kg/carton,Outer Pack:25.4kg/carton
  • Packaging
    Inner Pack:80pcs/carton;Outer Pack:320pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.12W
  • Output Voltage
    12-24V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    80°C
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1: 2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
