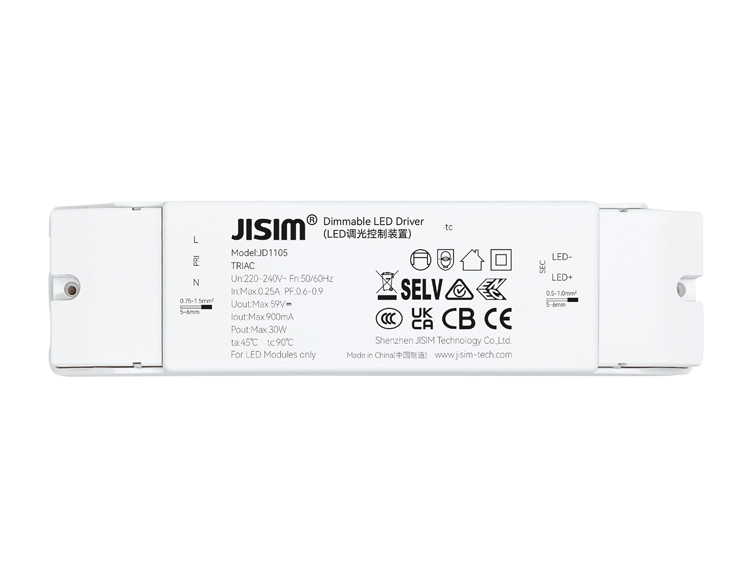

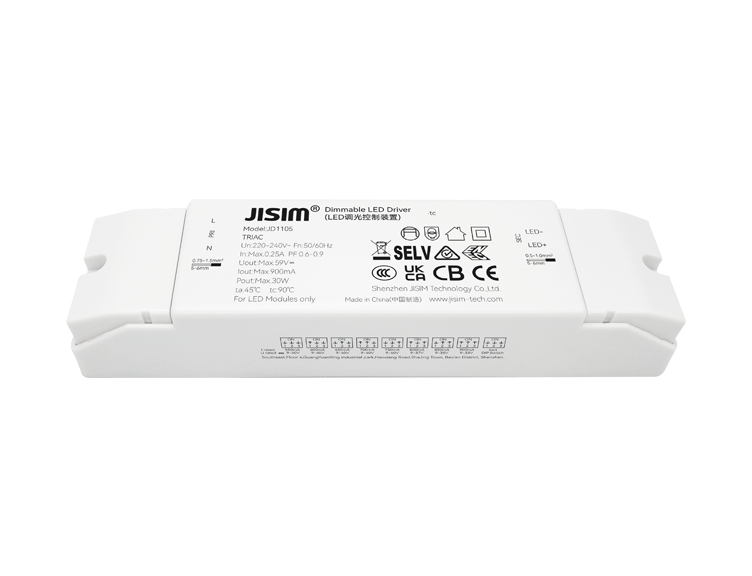

JD1105 Triac 30W 550-900mA 220-240VAC DIP

Compact‑size design, suitable for small‑aperture downlight‑spotlight, linear light
Dimmable constant‑current driver, high efficiency, long service life
Compatible with Triac leading‑edge or trailing‑edge dimmers
Two‑stage architecture design, built‑in MCU, unique dimming algorithm, flicker‑free, noise‑free
Smooth high‑performance dimming, compatible with more dimmers
Dimming range: 0.1…100%, built‑in soft‑start function
Select output current via DIP switch
Output short‑circuit, open‑circuit and overload protection
Complies with extra‑low safety voltage standard
Screw‑locking terminal blocks for input and output
Ambient temperature: -20～+45℃, maximum case temperature: 90℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD1105
Rated Voltage

220-240Vac
Output Current

550-900mA
Product Dimension

165*42*30mm
Dimming Mode

Triac
Dimming Range

0-1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 180±10g/pcs, Small‑pack: 197g/pcs, Middle carton:5.7kg/case, Big carton: 23.7kg/case
Packaging

Middle carton: 30pcs/case, Big carton: 120pcs/case
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.30W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90°C
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MΩ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
