Triac Independent CC Series
HomeProductTriac

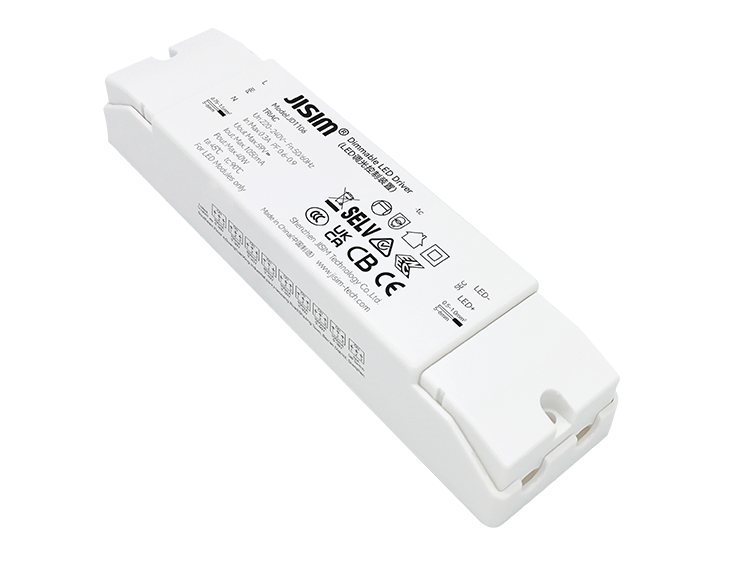

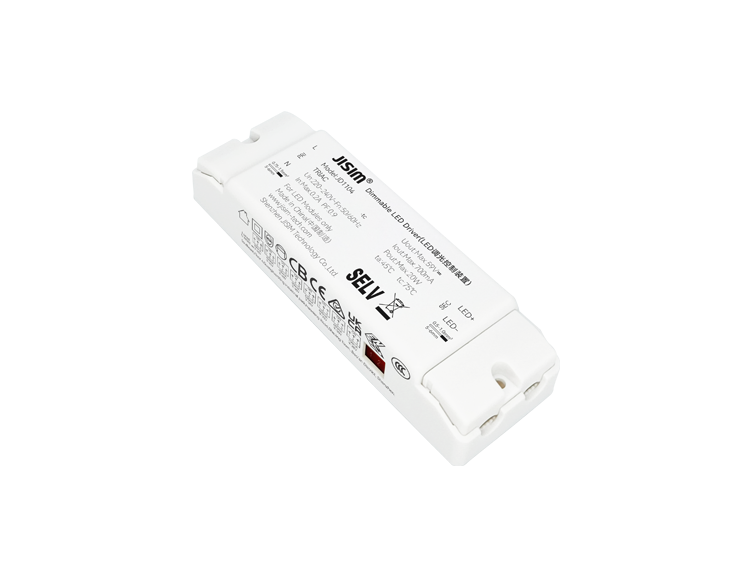

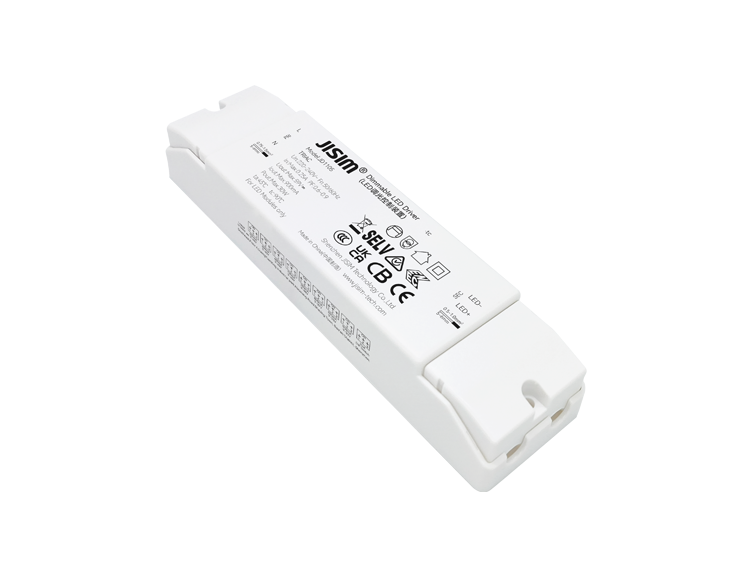

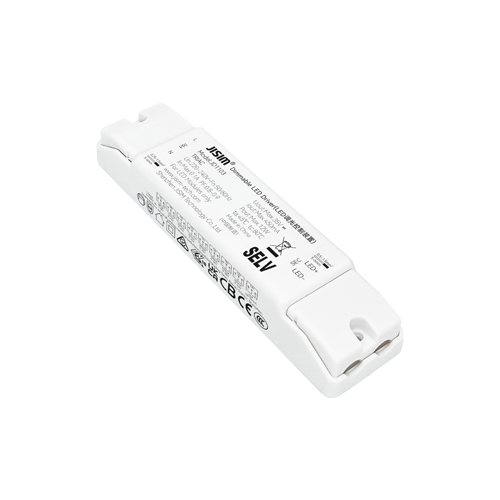

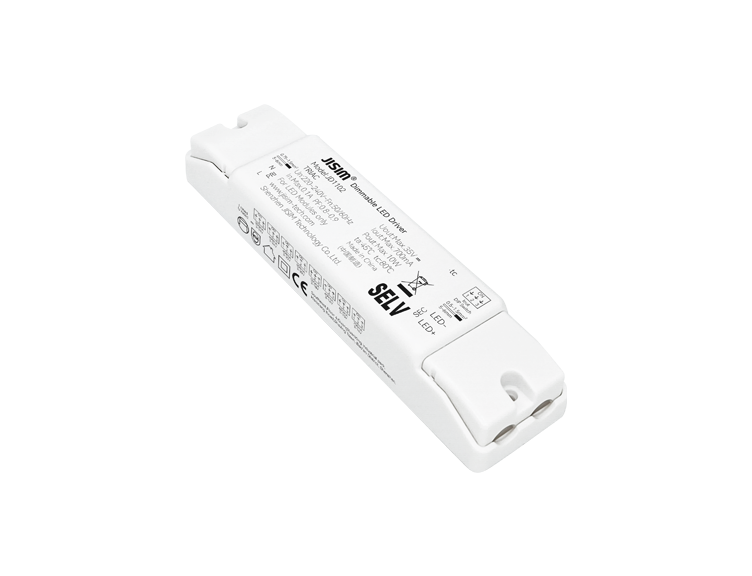

Triac Independent CC Series

Series Features

  • Compact design, suitable for small cutout downlights & spotlights and linear lights.
  • Dimmable CC driver, high efficiency, long lifespan.
  • Compatible with Triac leading edge or trailing edge phase-cut dimmers.
  • Dual-stage architecture design, built-in MCU, unique dimming algorithm, flicker-free, noise-free.
  • Smooth high-performance dimming, compatible with more dimmers.
  • Dimming range 0.1...100%, with built-in soft start function.
  • Output current selectable via DIP switch.
  • Output short circuit, open circuit and overload protection.
  • Complies with SELV (Safety Extra Low Voltage) standard.
  • Input and output screw terminal blocks.
  • Ambient temperature -20 to +45°C, maximum enclosure temperature 75/80/90°C.
  • Suitable for Class I, II and III luminaires.
  • Protection Class II.
Consult Now Buy Now
  • Dimming Mode
    Triac
  • Dimming Range
    0.1-100%
  • Protection
    Output short circuit, open circuit and overload protection.
  • Protection Class
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight: 61±10g/pcs, Small Pack: 72g/pcs, Middle Carton: 6kg/carton, Master Carton: 24.75kg/carton (See specification sheet for details)
  • Package
    Middle Carton: 80/48/30 pcs/carton, Master Carton: 320/192/120 pcs/carton
  • Operating Temperature
    -20-+45℃，20-90%RH
  • Storage Temperature
    -40-+80℃，5-90%RH
  • Max Case Temperature
    75℃/80℃/90℃
  • Withstand Voltage
    Input to Output：3750V/5mA/60S
  • Insulation Resistance
    Input to Output：100mΩ/500VDC/25℃/70%RH
  • Safety Standard
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Lifetime
    >50000h@ta=45℃
JD1101_CN
JD1101_CN
JD1101_EN
JD1101_EN
JD1102_CN
JD1102_CN
JD1102_EN
JD1102_EN
JD1103
JD1103
JD1104_CN
JD1104_CN
JD1104_EN
JD1104_EN
JD1105_CN
JD1105_CN
JD1105_EN
JD1105_EN
JD1106_CN
JD1106_CN
JD1106_EN
JD1106_EN
