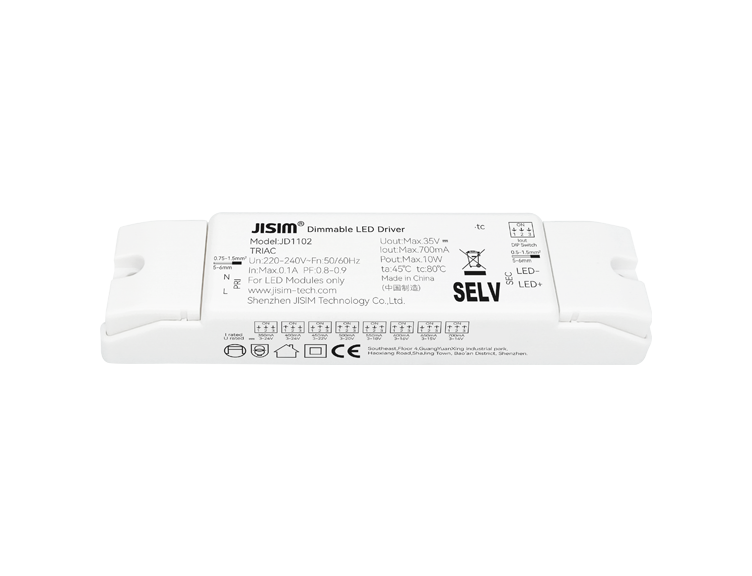

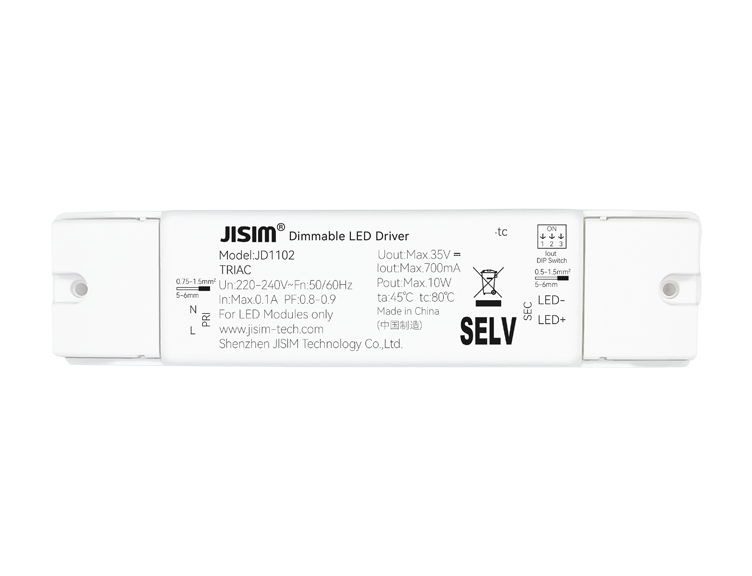

JD1102 Triac 10W 350-700mA 220-240VAC DIP

Compact design,suitable for small‑aperture downlight,linear light
Dimmable CC driver,high efficiency,long service life
Compatible with Triac leading‑edge or trailing‑edge dimmers
Bipolar architecture design,built‑in MCU,unique dimming algorithm,flicker‑free and noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 0.1…100%,built‑in soft‑start function
Select output current via DIP switch
Output short‑circuit,open‑circuit and overload protection
Complies with SELV standard
Screw‑locked terminals for input and output
Ambient temperature‑20～+45℃,maximum case temperature 80℃
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD1102
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

126*30*20mm
Dimming Mode

Triac,leading‑edge&trailing‑edge dimming
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:68±10g/pcs,Small Pack:72.8g/pcs,Inner Pack:6.13kg/carton,Outer Pack:25.4kg/carton
Packaging

Inner Pack:80pcs/carton;Outer Pack:320pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.10W
Output Voltage

3-24V
PF

>0.5
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

80°C
Withstand Voltage

Input to output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
