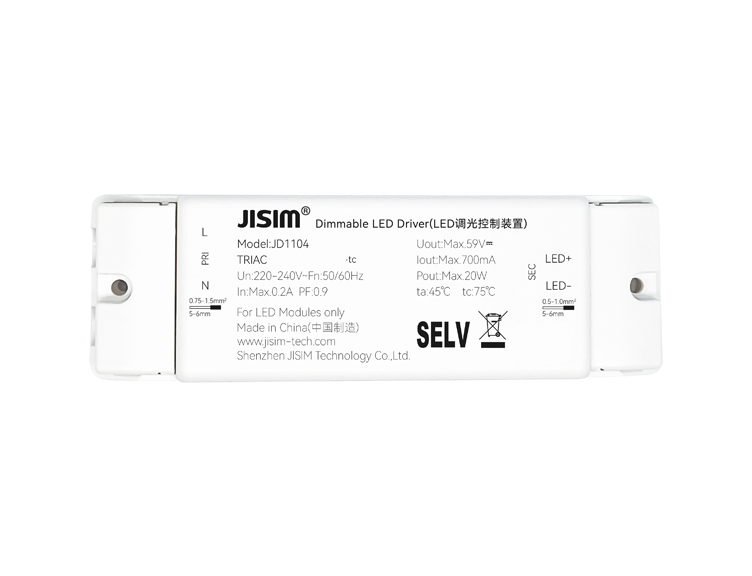

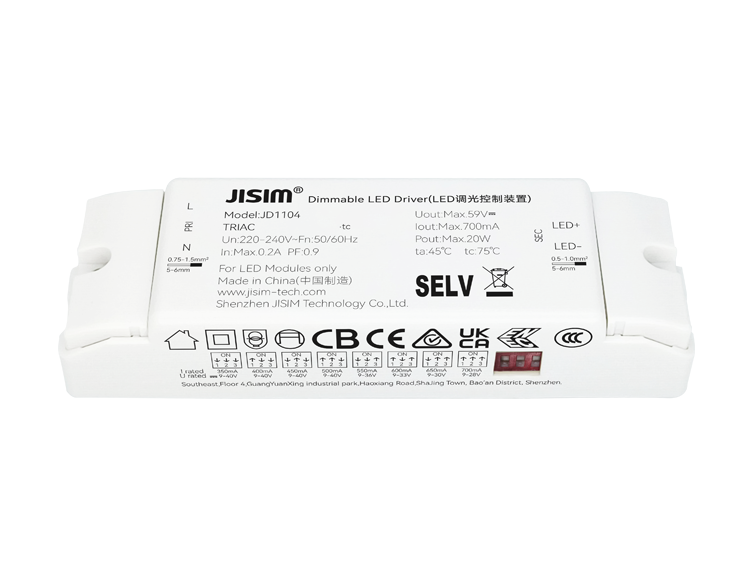

JD1104 Triac 24W 350-700mA 220-240VAC DIP

Compact design,suitable for small cut‑out downlights and spotlights,linear lights
Dimmable constant‑current driver,high efficiency,long service life
Compatible with Triac forward‑phase or reverse‑phase cut dimmers
Bipolar architecture design,built‑in MCU,unique dimming algorithm,flicker‑free,noise‑free
Smooth high‑performance dimming,compatible with more dimmers
Dimming range 0.1…100%,built‑in soft‑start function
Select output current via dip switch
Output short‑circuit,open‑circuit and overload protection
Comply with safety extra‑low‑voltage standard
Screw‑locking terminals for input and output
Ambient temperature ‑20～+45℃,maximum case temperature 90℃
Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD1104
Rated Voltage

220-240VAC
Output Current

350-700mA
Product Dimension

120*38*23mm
Dimming Mode

Triac
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:95.4±10g/pcs,Small Pack:105g/pcs,Inner Pack:5.34kg/carton,Outer Pack:22.26kg/carton
Packaging

Inner Pack:48pcs/carton,Outer Pack:192pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.24W
Output Voltage

9-45V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90°C
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>5000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
