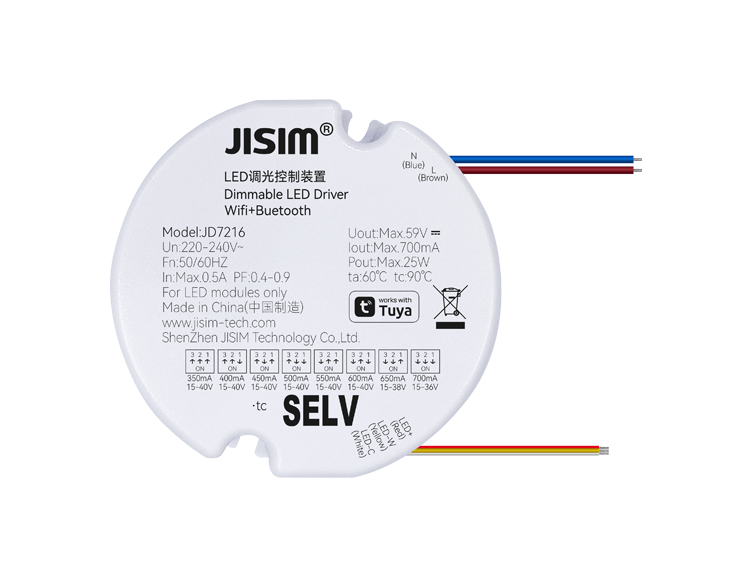

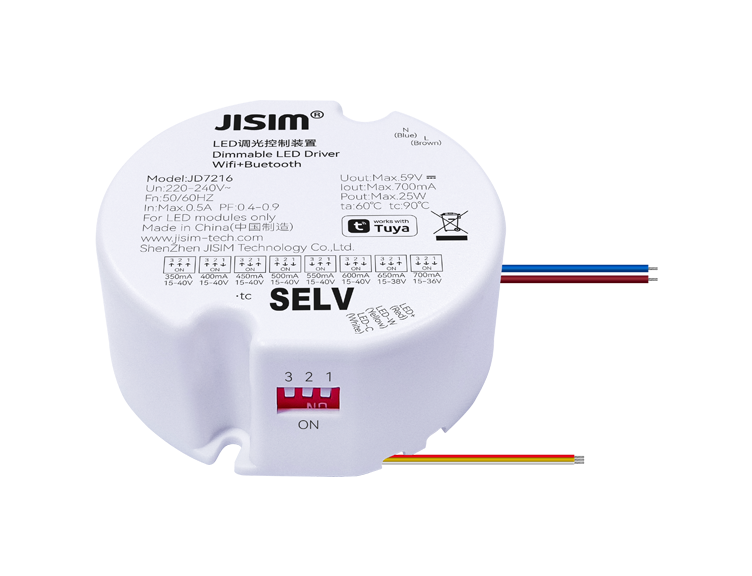

JD7216 Wifi+Bluetooth 25W 350-700mA 220-240VAC DIP
HomeProductWIFI

JD7216 Wifi+Bluetooth 25W 350-700mA 220-240VAC DIP

Product Features

  • Compact design, suitable for surface‑mount downlight, spotlight, track light, wall light
  • Built‑in driver application, external IPEX antenna
  • Dimmable color‑tunable CC driver, high power factor, high efficiency and long service life
  • Wifi+Bluetooth communication, developed based on Tuya platform, strong networking capability
  • Smooth high‑performance dimming, flicker‑free, noise‑free
  • Dimming range 1…100%, built‑in soft‑start function
  • Compatible with Tmall Genie, Baidu Duer, Xiaomi Xiaoai, Smart Home Manager, Tencent Xiaowei, Tencent Dingdang and JD Dingdong control
  • Select output current via DIP‑switch
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with SELV standard
  • Lead‑type input and output terminals
  • Ambient temperature: -20～+60℃, maximum case temperature 90℃
  • Internally potted and sealed, enhanced protection for lamps requiring waterproof and moisture‑proof performance
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD7215
  • Rated Voltage
    220-240Vac
  • Output Current
    350-700mA
  • Product Dimension
    65*63*26mm
  • Dimming Mode
    Wifi+Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:115.2±10g/pcs,Small Pack:127.2g/pcs,Inner Pack:6.9kg/carton,Outer Pack:28.56kg/carton
  • Packaging
    Inner Pack:52pcs/carton,Outer Pack:208pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.25W
  • Output Voltage
    15-42V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Built‑in
  • Warranty
    5 years
