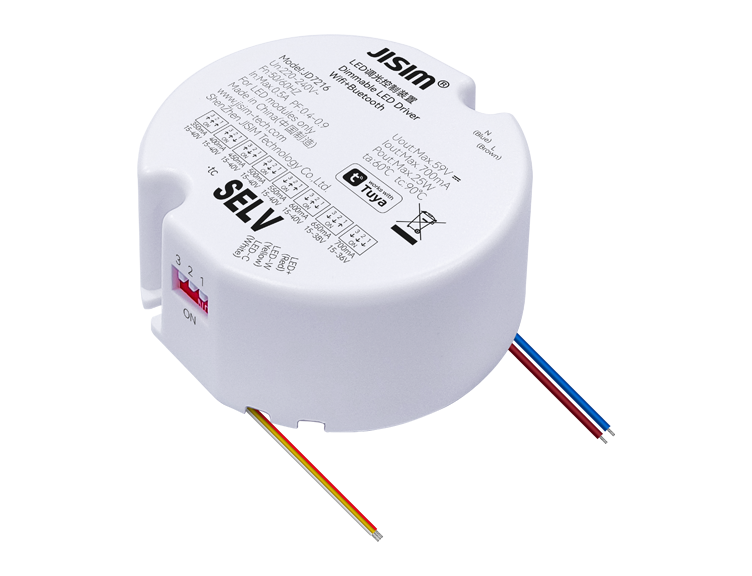

Wi-Fi+Bluetooth Built-in CC CCT Tunable Series

Compact design, suitable for surface mount downlights, spotlights, track lights and wall lights
Built-in driver application, independent IPEX antenna
Dimmable CCT tunable CC driver, high power factor, high efficiency and long service life
Wi-Fi+Bluetooth communication, developed based on Tuya platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1…100%, built-in soft start function
Supports control via Tmall Genie, Baidu Xiaodu, Xiaomi Xiaoai, Xiaozhi Butler, Tencent Xiaowei, Tencent Dingdang and JD Dingdong
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Comply with safety extra-low voltage standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internal potting sealing, enhanced protection for lamps requiring waterproof and moisture-proof performance
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

Wifi+Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 85.9±10g/pcs, Small Pack: 95.9g/pcs, Inner Pack: 6.63kg/carton, Outer Pack: 27.5kg/carton (See datasheet for details)
Package

Inner Pack:66pcs/52pcs/carton, Outer Pack:264pcs/208pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to output:3750Vac,5mA,60s
Insulation Resistance

Input to output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
