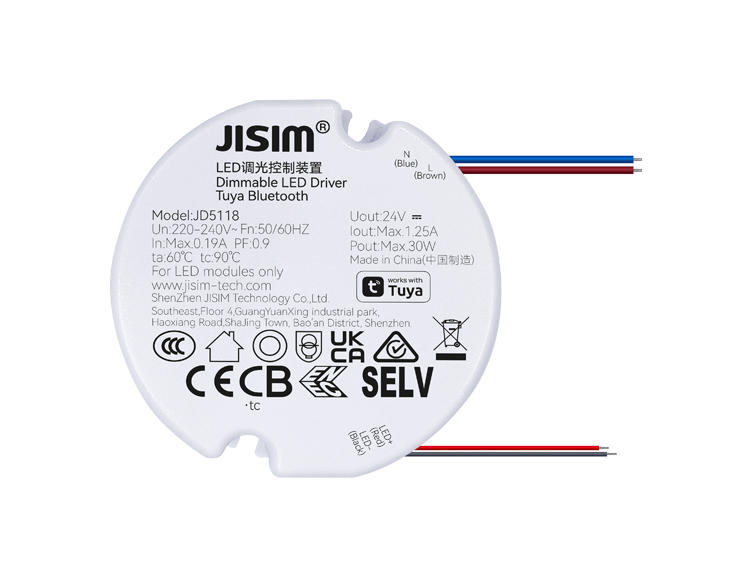

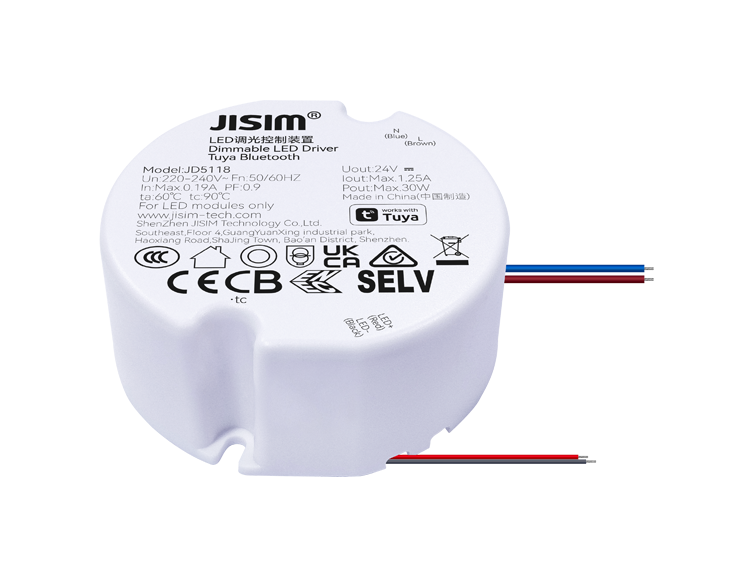

JD5118 Tuya Bluetooth 30W 1.32A 220-240VAC DIP

Compact design, suitable for modern‑style decorative lamps such as wall lamps, table lamps and pendant lamps
Built‑in driver application, external IPEX antenna
Dimmable CV driver, high power factor, high efficiency and long service life
Bluetooth communication, developed based on Tuya platform, strong networking capability
Smooth high‑performance dimming, flicker‑free, noise‑free
Dimming range 1…100%, with built‑in soft‑start function
Supports Tmall Genie, Baidu Duer, Xiaomi Xiao Ai, Smart Steward, Tencent Weiyee, Tencent Dingdang and JD Dingdong control
Output short‑circuit, open‑circuit and overload protection
Complies with SELV safety standard
Lead‑type input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internally potted and sealed, provides enhanced protection for lamps requiring water and moisture resistance
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD5118
Rated Voltage

220-240Vac
Output Current

1.32A
Product Dimension

65*63*26mm
Dimming Mode

Tuya Bluetooth
Dimming Range

1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:115.5±10g/pcs,Small Pack:127.7g/pcs,Inner Pack:6.9kg/carton,Outer Pack:28.6kg/carton
Packaging

Inner Pack:52pcs/carton,Outer Pack:208pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CV
Output Power

Max.30W
Output Voltage

24V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Built‑in
Warranty

5 years
