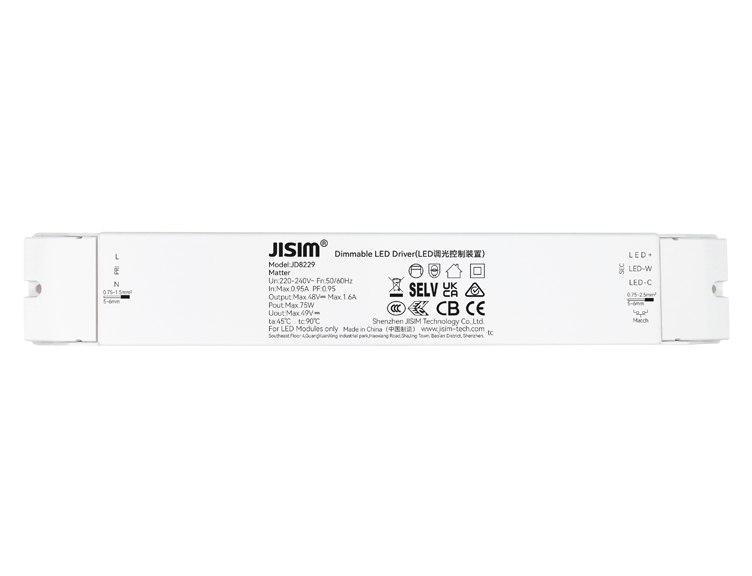

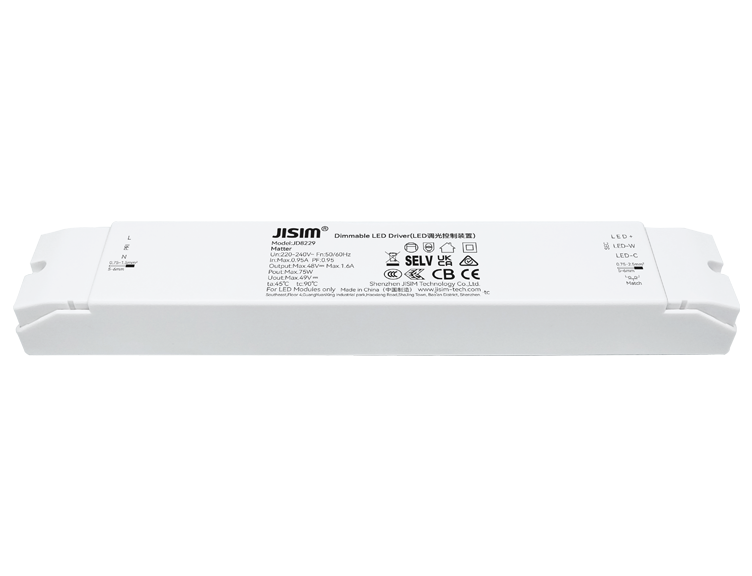

JD8229 Matter 75W 1.6A 220-240VAC DIP

HomeProductMatter

JD8229 Matter 75W 1.6A 220-240VAC DIP

Product Features

Independent design, suitable for LED strips, light bars, linear lights, lamp films, magnetic lights and decorative lights
Dimmable CCT constant voltage driver, full power, high power factor, high efficiency and long lifespan
Wi-Fi/Thread communication, developed based on Matter, strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1...100%, with built-in soft start function
Supports control via Tmall Genie, Baidu DuerOS, Xiaomi Xiaoai, Xiaozhi, Tencent WeChat, Tencent Dingdang and JD Dingdong
Output short-circuit, open-circuit and overload protection
Complies with SELV standard
Input and output screw-locking terminals
Ambient temperature -20 to +45°C, maximum case temperature 90°C
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD8229
Rated Voltage

220-240Vac
Output Current

1.6A
Product Dimension

265*42*30mm
Dimming Mode

Matter
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight: 264±10g/pcs, Small Pack: 294g/pcs, Inner Pack: 4.7kg/carton, Outer Pack: 19.7kg/carton
Packaging

Inner Pack: 15pcs/carton, Outer Pack: 52pcs/carton
Output Channel

CCT
IP Rating

IP20
Working Mode

CV
Output Power

Max.75W
Output Voltage

48V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output: 3750Vac, 5mA, 60s
Insulation Resistance

Input to Output: 100MΩ / 500VDC / 25°C / 70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5years
