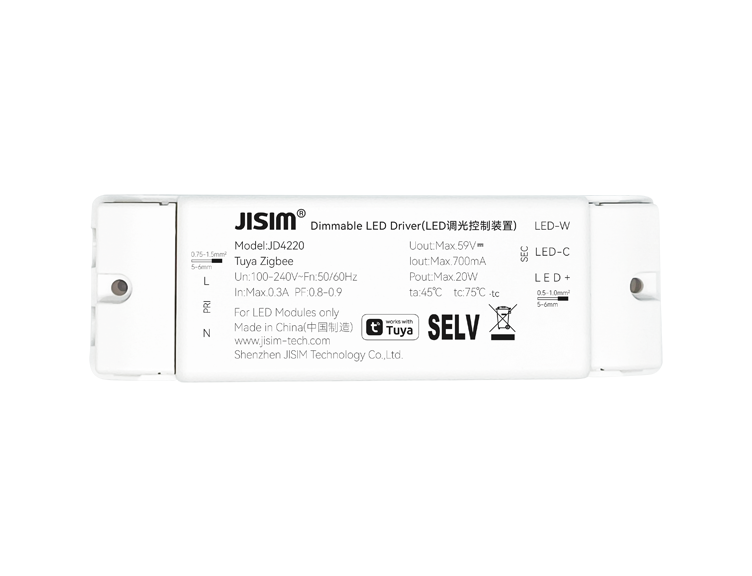

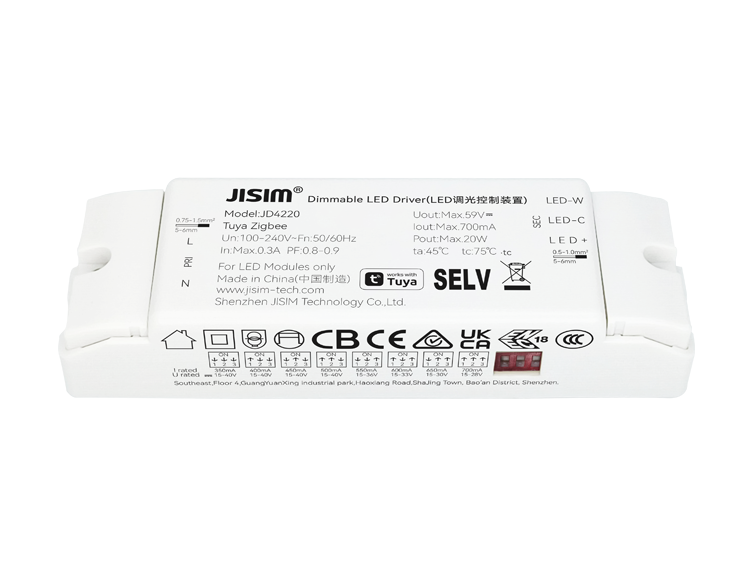

JD4220 ZigBee 20W 350-700mA 100-240VAC DIP
HomeProductZigBee

JD4220 ZigBee 20W 350-700mA 100-240VAC DIP

Product Features

  • Compact design, suitable for small cut‑out downlight‑spotlight and linear light
  • Dimmable color‑tunable CC driver, high power factor, high efficiency, long service life
  • ZigBee communication, developed based on Tuya platform, strong networking capability
  • Smooth high‑performance dimming, flicker‑free, noise‑free
  • Dimming range 1…100%, with built‑in soft‑start function
  • Supports control by Tmall Genie, Baidu Duer, Xiaomi Xiaoai, Smart Steward, Tencent Weixiao, Tencent Dingdang and JD Dingdong
  • Select output current via dip‑switch
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with safety extra‑low‑voltage standard
  • Screw‑locking input and output terminals
  • Ambient temperature -20～+45℃, maximum case temperature 75/80/90℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD4220
  • Rated Voltage
    100-240Vac
  • Output Current
    350-700mA
  • Product Dimension
    120*38*23mm
  • Dimming Mode
    ZigBee
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:93.4±10g/pcs,Small Pack:105.2g/pcs,Inner Pack:5.35kg/carton,Outer Pack:22.3kg/carton
  • Packaging
    Inner Pack:48pcs/carton,Outer Pack:192pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.20W
  • Output Voltage
    15-40V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
