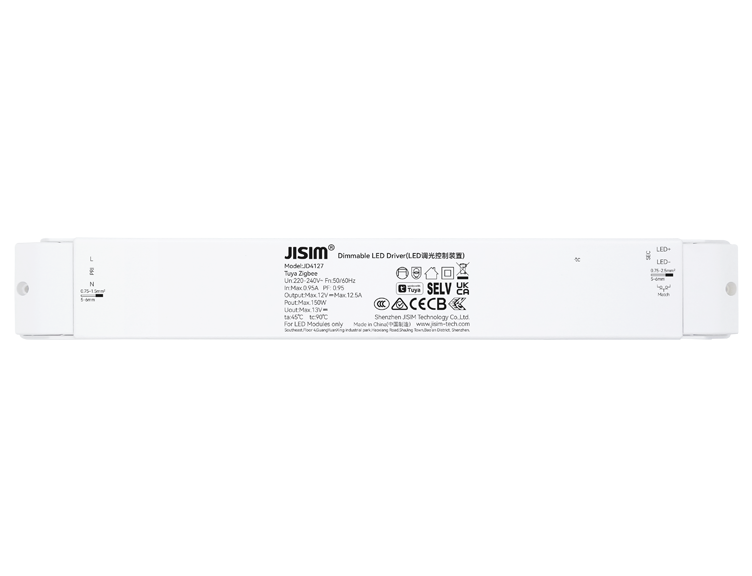

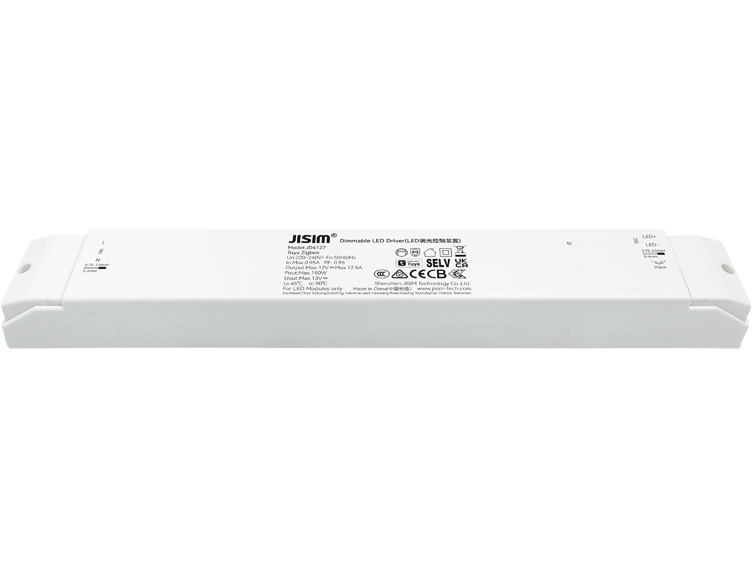

JD4127 ZigBee 150W 12.5A 220-240VAC DIP
HomeProductZigBee

JD4127 ZigBee 150W 12.5A 220-240VAC DIP

Product Features

  • Independent design,suitable for LED strip,linear light,light film,magnetic‑track light,decorative light
  • Dimmable CV driver,full power,high power factor,high efficiency,long service life
  • ZigBee communication,developed based on Tuya platform,strong networking capability
  • Smooth high‑performance dimming,flicker‑free and noise‑free
  • Dimming range 1…100%,built‑in soft‑start function
  • Supports control by Tmall Genie,Baidu Xiaodu,Xiao‑ai,Xiaozhi Butler,Tencent Weixiao,Tencent Dingdong and JD Dingdong
  • Output short‑circuit,open‑circuit and overload protection
  • Complies with SELV standard
  • Input and output screw‑locking terminals
  • Ambient temperature‑20～+45℃,Maximum case temperature 90℃
  • Suitable for Class ⅠⅡⅢ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD4127
  • Rated Voltage
    220-240Vac
  • Output Current
    12.5A
  • Product Dimension
    325*44*30mm
  • Dimming Mode
    ZigBee
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:388.7±10g/pcs,Small Pack:422.5g/pcs,Inner Pack:5.79kg/carton,Outer Pack:24kg/carton
  • Packaging
    Inner Pack:13pcs/carton,Outer Pack:52pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.150W
  • Output Voltage
    12V
  • PF
    >0.95
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
