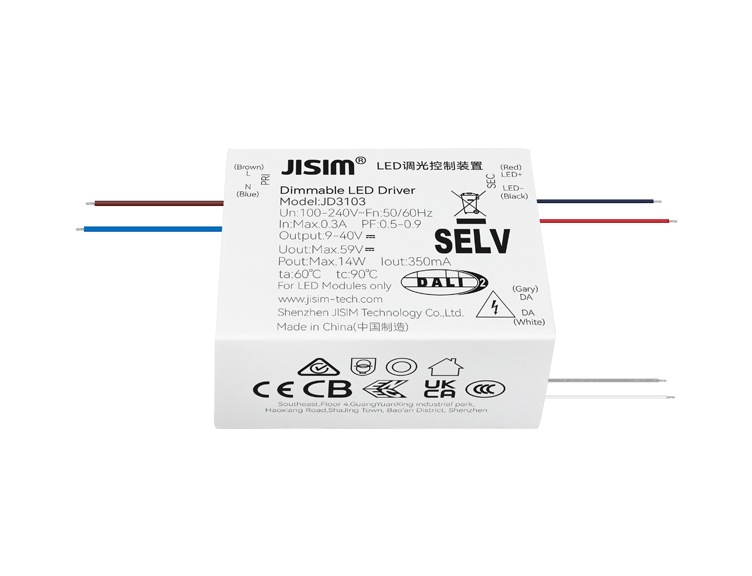

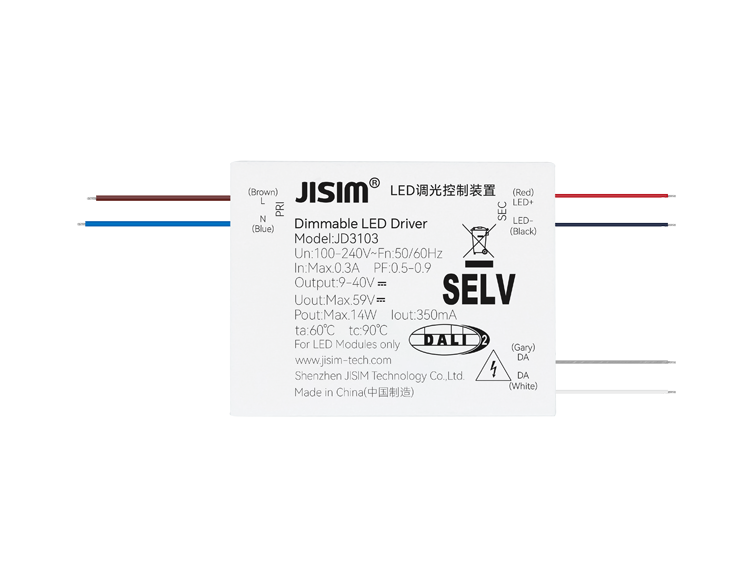

JD3103 DALI DT6 14.7W 100-350mA 220-240VAC DIP

Compact design,suitable for surface‑mount downlight,spotlight,track light,wall light
Internal driver application
Dimmable CC driver,high power factor,high efficiency,long service life
Supports DALI‑2+Push dimming
Flicker‑free,noise‑free
Smooth high‑performance dimming,compatible with more DALI masters
Dimming range 1…100%,built‑in soft‑start function
Output short‑circuit,open‑circuit and overload protection
Complies with SELV standard
Lead‑type input and output terminals
Ambient temperature‑20～+60℃,Maximum case temperature 90℃
Internal potting seal of product,enhanced protection for luminaires requiring water‑proof and moisture‑proof
Suitable for Class ⅠⅡⅢ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD3103
Rated Voltage

220-240Vac
Output Current

100-350mA
Product Dimension

53*42*23mm
Dimming Mode

DALI DT6
Dimming Range

1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:92.3±10g/pcs,Small Pack:102g/pcs,Inner Pack:6.83kg/carton,Outer Pack:28.21kg/carton
Packaging

Inner Pack:64pcs/carton,Outer Pack:256pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.14.7W
Output Voltage

9-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Built‑in
Warranty

5 years
