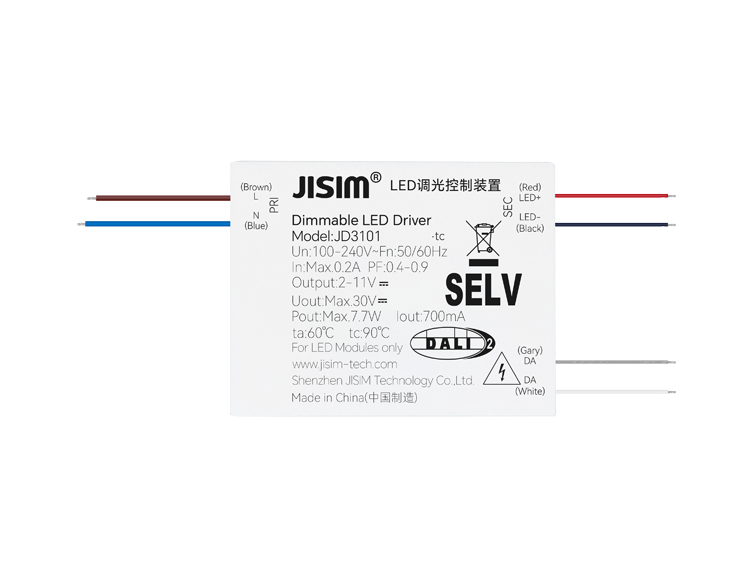

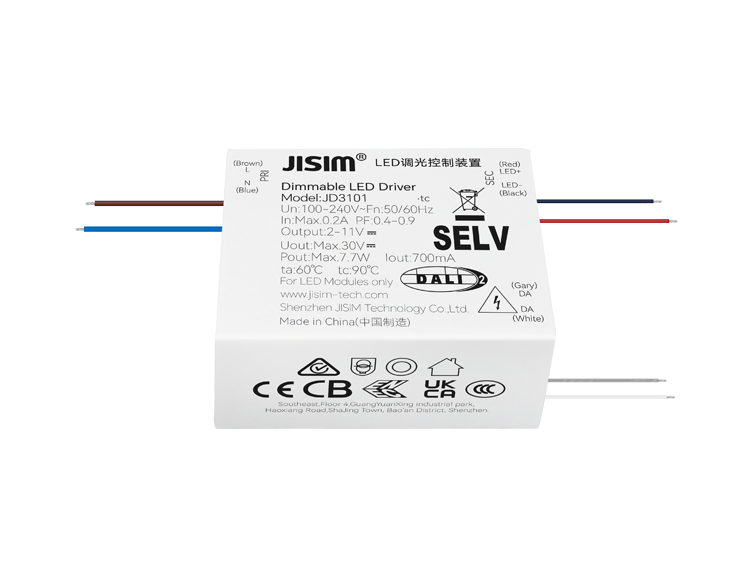

JD3101 DALI DT6 7.7W 350-700mA 220-240VAC DIP

Compact design, suitable for surface mount downlights, spotlights, track lights and wall lights
Built-in driver application
Dimmable CC driver, high power factor, high efficiency and long service life
Supports DALI-2+Push dimming
Flicker-free and noise-free
Smooth high-performance dimming, compatible with more DALI masters
Dimming range 1…100%, built-in soft start function
Output short-circuit, open-circuit and overload protection
Complies with SELV standard
Lead type for input and output terminals
Ambient temperature: -20～+60℃, maximum case temperature 90℃
Internally potted and sealed to enhance protection for lamps requiring waterproof and moisture-proof performance
Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD3101
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

53*42*23mm
Dimming Mode

DALI DT6
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:92.3±10g/pcs, Small Pack:102g/pcs, Inner Pack:6.83kg/carton, Outer Pack:28.21kg/carton
Packaging

Inner Pack:64pcs/carton, Outer Pack:256pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.7.7W
Output Voltage

2-11V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
