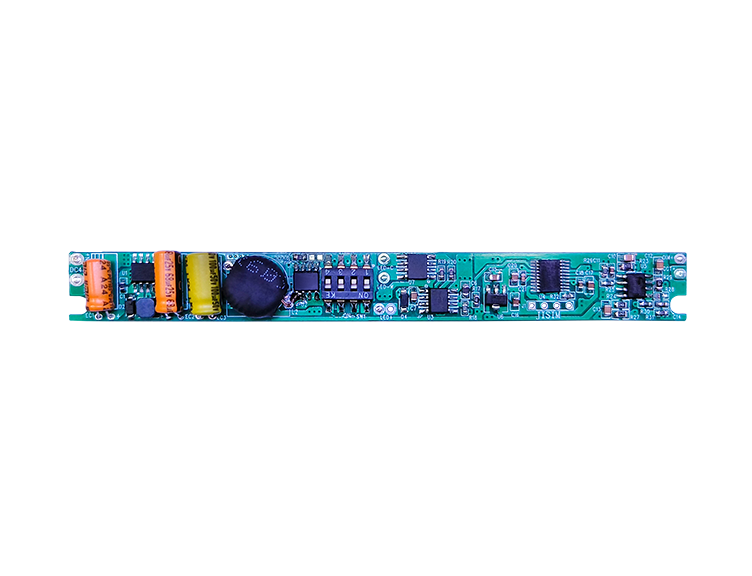

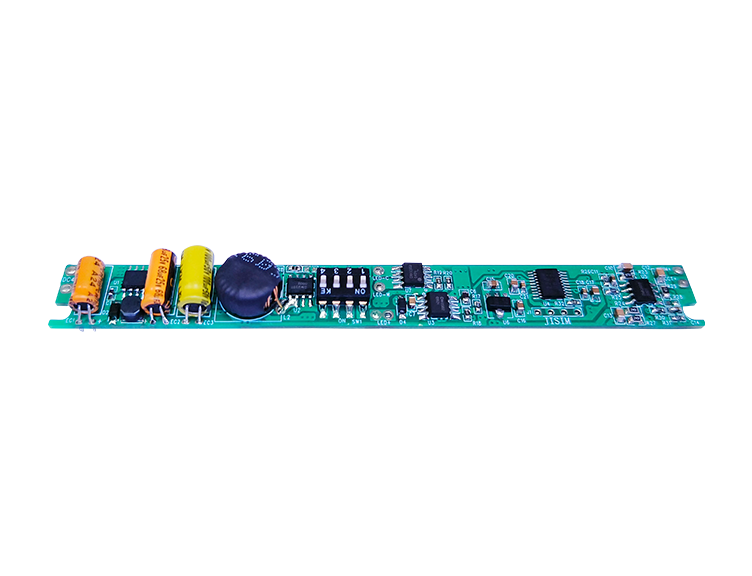

JD2213 0/1-10V 28W 150-700mA 220-240VAC DIP

Compact design, suitable for magnetic track lights
Dimmable CCT tunable CC driver, high efficiency and long service life
Supports 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming
Dual-pole architecture design with built-in MCU and exclusive dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 0.1…100%, built-in soft start function
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Ambient temperature: -20～+45℃
Suitable for Class Ⅲ luminaires

Consult Now Buy Now

Model Number

JD2213
Rated Voltage

220-240Vac
Output Current

150-700mA
Product Dimension

124*13.8*12mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:10.1±10g/pcs, Inner Pack:3.57kg/carton, Outer Pack:15.18kg/carton
Packaging

Inner Pack:210pcs/carton, Outer Pack:480pcs/carton
Output Channel

3CCT
IP Rating

IP20 (Enclosed)
Working Mode

CC
Output Power

Max.28W
Output Voltage

15-42V
PF

1
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

-
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
