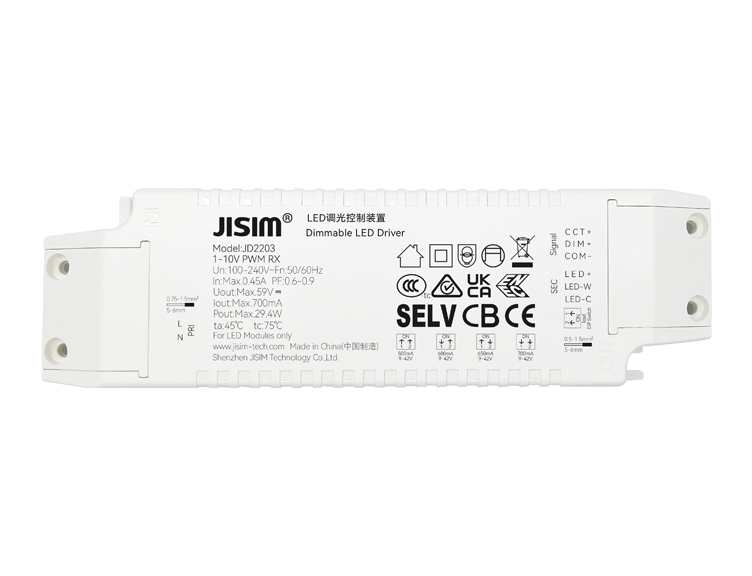

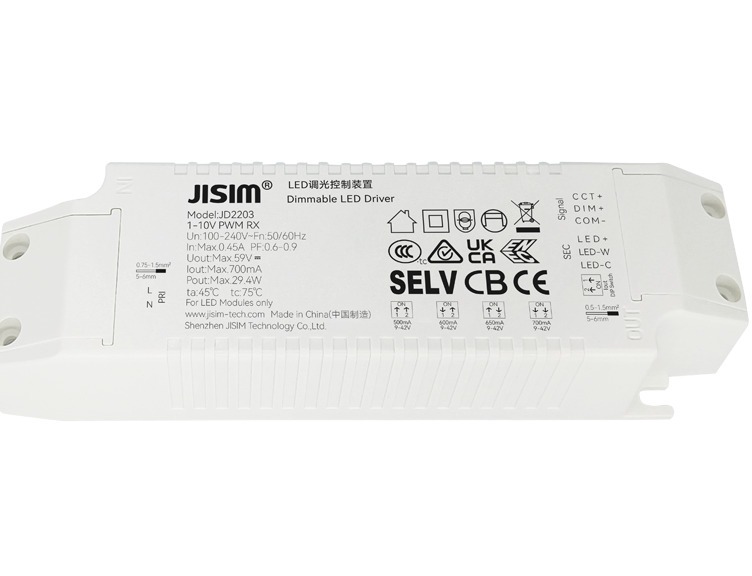

JD2203 0/1-10V 29.4W 500-700mA 220-240VAC DIP
HomeProduct0/1-10V PWM RX

JD2203 0/1-10V 29.4W 500-700mA 220-240VAC DIP

Product Features

  • Compact design, suitable for small cutout downlights and linear lights
  • Dimmable CC driver with CCT tuning, high power factor, high efficiency and long lifespan
  • Compatible with 0-10V, 1-10V, 10V PWM, 100K potentiometer dimming
  • Two-stage architecture design, built-in MCU, unique dimming algorithm, flicker-free and noise-free
  • Smooth high-performance dimming, compatible with more dimmers
  • Dimming range 0.1...100%, with built-in soft start function
  • Output current selectable via DIP switch
  • Output short-circuit, open-circuit and overload protection
  • Complies with SELV standard
  • Input and output push-in terminals
  • Ambient temperature -20 to +45°C, maximum case temperature 75°C
  • Suitable for Class I, II and III luminaires
  • Protection Class II
Consult Now Buy Now
  • Model Number
    JD2203
  • Rated Voltage
    220-240Vac
  • Output Current
    500-700mA
  • Product Dimension
    152*44*30mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    0.1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:128.4±10g/pcs,Small Pack:146.8g/pcs,Inner Pack:4.71kg/carton,Outer Pack:19.74kg/carton
  • Packaging
    Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
  • Output Channel
    CCT
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.29.4W
  • Output Voltage
    9-42V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    75℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MΩ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
