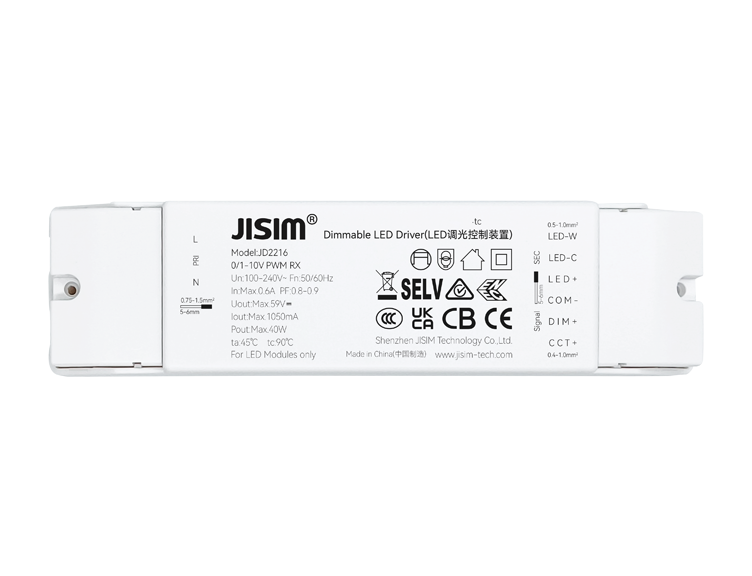

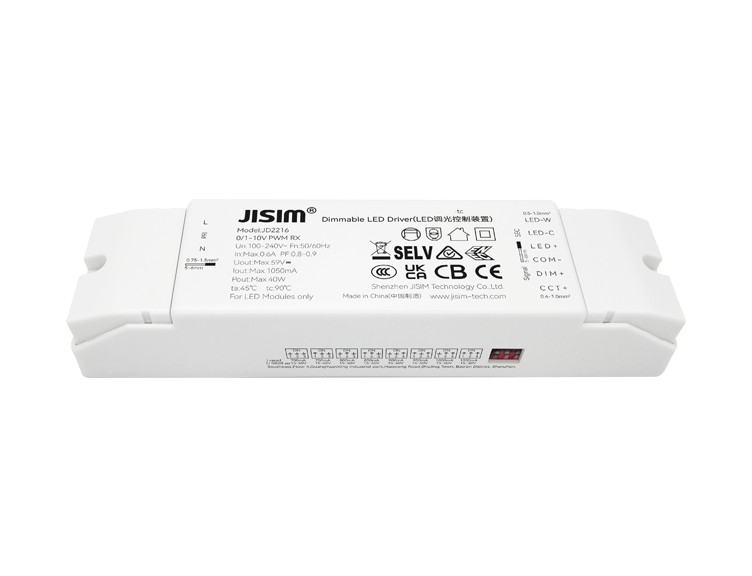

JD2216 0/1-10V 40W 700-1050mA 100-240VAC DIP
HomeProduct0/1-10V PWM RX

JD2216 0/1-10V 40W 700-1050mA 100-240VAC DIP

Product Features

  • Compact design, suitable for small cutout downlights and linear lights
  • Dimmable CC driver with CCT tuning, high power factor, high efficiency and long lifespan
  • Compatible with 0-10V, 1-10V, 10V PWM, 100K potentiometer dimming
  • Two-stage architecture design, built-in MCU, unique dimming algorithm, flicker-free and noise-free
  • Smooth high-performance dimming, compatible with more dimmers
  • Dimming range 0.1...100%, with built-in soft start function
  • Output current selectable via DIP switch
  • Output short-circuit, open-circuit and overload protection
  • Dimming port isolated, output complies with SELV standard
  • Input and output screw-locking terminals
  • Ambient temperature -20 to +45°C, maximum case temperature 90°C
  • Suitable for Class I, II and III luminaires
  • Protection Class II
Consult Now Buy Now
  • Model Number
    JD2216
  • Rated Voltage
    100-240Vac
  • Output Current
    700-1050mA
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    0.1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Output short-circuit, open-circuit and overload protection
  • Packaging
    Inner Pack: 30pcs/carton, Outer Pack: 120pcs/carton
  • Output Channel
    CCT
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.40W
  • Output Voltage
    15-40V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output: 3750Vac, 5mA, 60s
  • Insulation Resistance
    Input to Output: 3750Vac, 5mA, 60s
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
