JD2134A 0/1-10V 29.4W 350-700mA 48VDC DIP
HomeProduct0/1-10V PWM RX

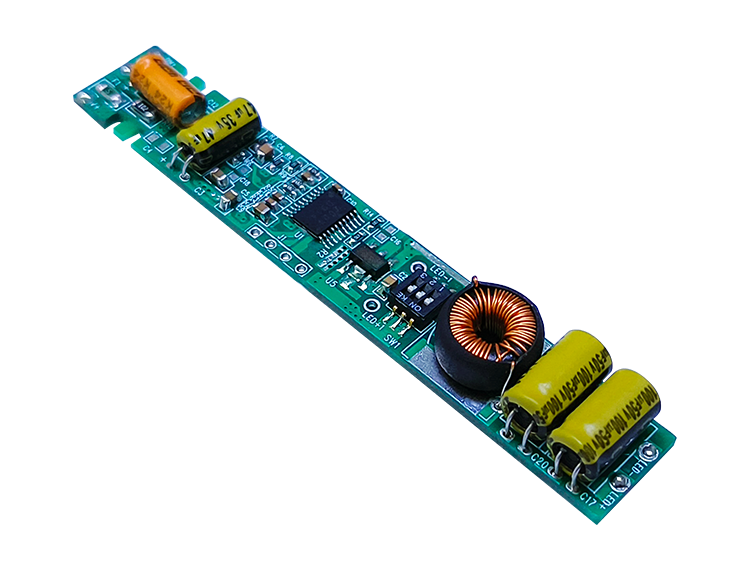

JD2134A 0/1-10V 29.4W 350-700mA 48VDC DIP

Product Features

  • Compact design,suitable for magnetic track light
  • Dimmable CC driver,high efficiency,long service life
  • Compatible with 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
  • Dual‑pole architecture design,built‑in MCU,unique dimming algorithm,flicker‑free and noise‑free
  • Smooth high‑performance dimming,compatible with more dimmers
  • Dimming range 0.1…100%,with built‑in soft‑start function
  • Select output current via DIP‑switch
  • Output short‑circuit,open‑circuit and overload protection
  • Ambient temperature ‑20～+45℃
  • Suitable for Class Ⅲ luminaires
Consult Now Buy Now
  • Model Number
    JD2134A
  • Rated Voltage
    220-240Vac
  • Output Current
    350-700mA

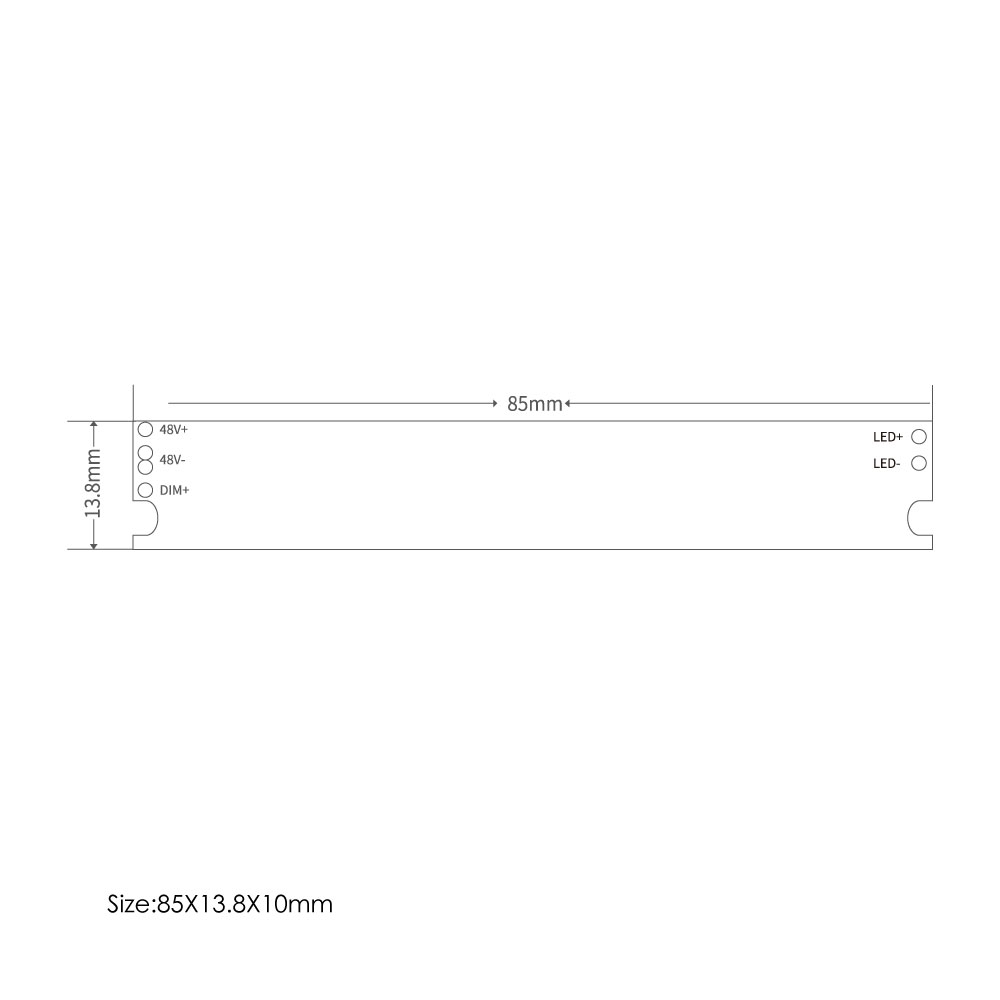

  • Product Dimension
    85*13.8*10mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    0.1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20(with housing)
  • Frequency
    50-60Hz
  • Weight
    Net Weight:9±3g/pcs,Inner Pack:3.34kg/carton,Outer Pack:14.26kg/carton
  • Packaging
    Inner Pack:210pcs/carton,Outer Pack:840pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20(with housing)
  • Working Mode
    CC
  • Output Power
    Max.29.4W
  • Output Voltage
    9-42V
  • PF
    1
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    -
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Built‑in
  • Warranty
    5 years
