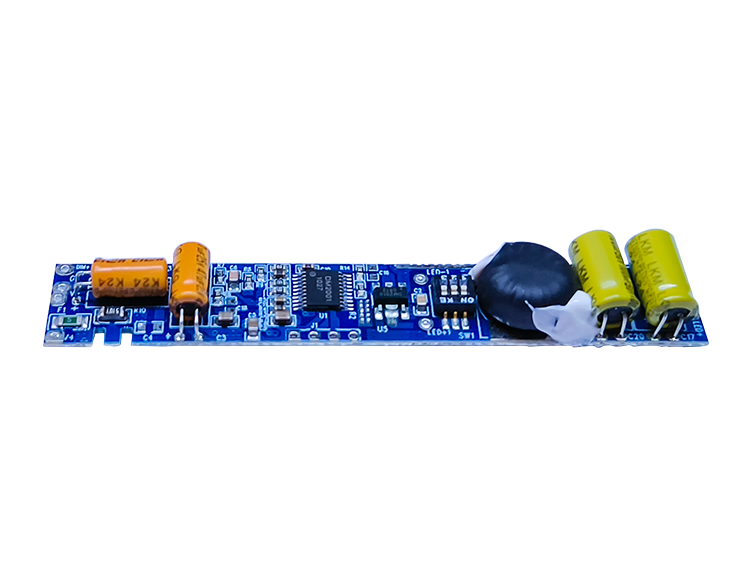

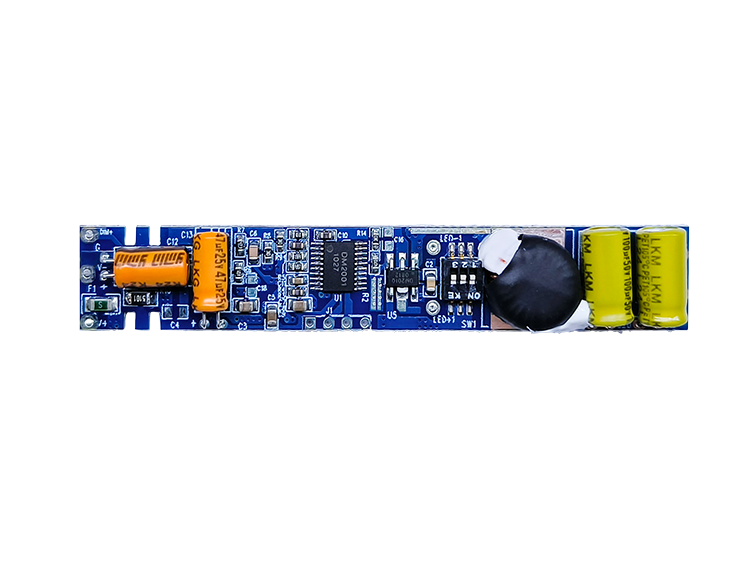

JD2134 0/1-10V 12.6W 90-300mA 48VDC DIP
HomeProduct0/1-10V PWM RX

JD2134 0/1-10V 12.6W 90-300mA 48VDC DIP

Product Features

  • Compact design, suitable for magnetic track lights
  • Dimmable CC driver, high efficiency and long service life
  • Supports 0‑10V, 1‑10V, 10V PWM and 100K potentiometer dimming
  • Dual‑pole architecture design, built‑in MCU, exclusive dimming algorithm, flicker‑free and noise‑free
  • Smooth high‑performance dimming, compatible with more dimmers
  • Dimming range 0.1…100%, built‑in soft‑start function
  • Select output current via DIP switch
  • Output short‑circuit, open‑circuit and overload protection
  • Ambient temperature: -20～+45℃
  • Suitable for Class Ⅲ luminaires
Consult Now Buy Now
  • Model Number
    JD2134
  • Rated Voltage
    220-240Vac
  • Output Current
    90-300mA
  • Product Dimension
    85*13.8*10mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    0.1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20(with enclosure)
  • Frequency
    50-60Hz
  • Weight
    Net Weight:8.9±10g/pcs,Inner Pack:3.32kg/carton,Outer Pack:3.6kg/carton
  • Packaging
    Inner Pack:210pcs/carton,Outer Pack:840pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.12.6W
  • Output Voltage
    9-42V
  • PF
    1
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    -
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Built‑in
  • Warranty
    5 years
