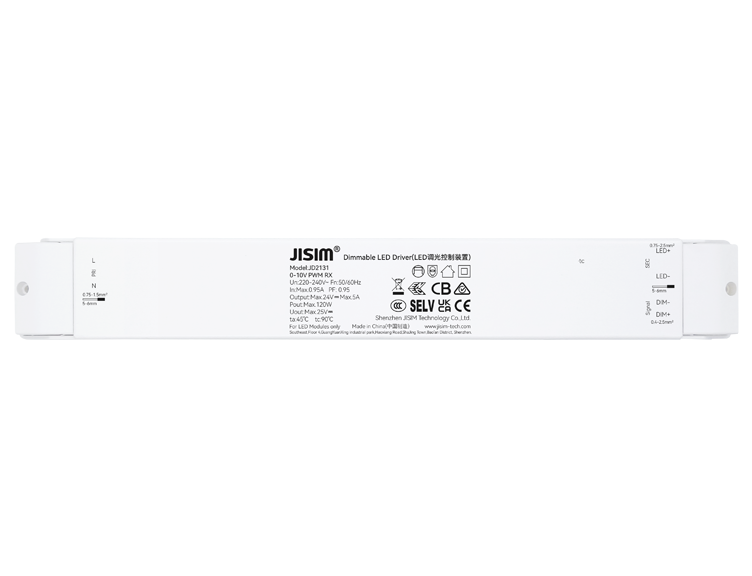

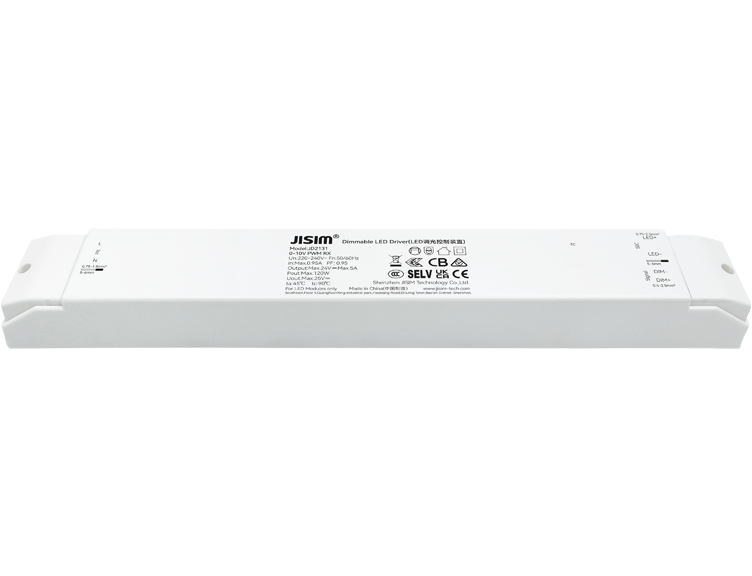

JD2131 0/1-10V 120W 5A 220-240VAC DIP

Product Features

  • Independent design,suitable for LED strips,linear lights,light films,magnetic track lights,decorative lights
  • Dimmable constant‑voltage driver,full power,high power factor,high efficiency,long service life
  • Supports 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
  • Built‑in MCU,unique dimming algorithm,flicker‑free,noise‑free
  • Smooth high‑performance dimming,compatible with more dimmers
  • Dimming range 1…100%,with soft‑start function
  • Output short‑circuit,open‑circuit and overload protection
  • Isolated dimming port,output complies with safety extra‑low voltage standard
  • Screw‑locking terminals for input and output
  • Ambient temperature ‑20～+45℃,maximum case temperature 90℃
  • Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection class Ⅱ
Consult Now Buy Now
  • Model Number
    JD2131
  • Rated Voltage
    220-240Vac
  • Output Current
    5A
  • Product Dimension
    325*44*30mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:365.9±10g/pcs,Small Pack:399.6g/pcs,Inner Pack:5.5kg/carton,Outer Pack:22.88kg/carton
  • Packaging
    Inner Pack:13pcs/carton,Outer Pack:52pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.120W
  • Output Voltage
    24V
  • PF
    >0.95
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
