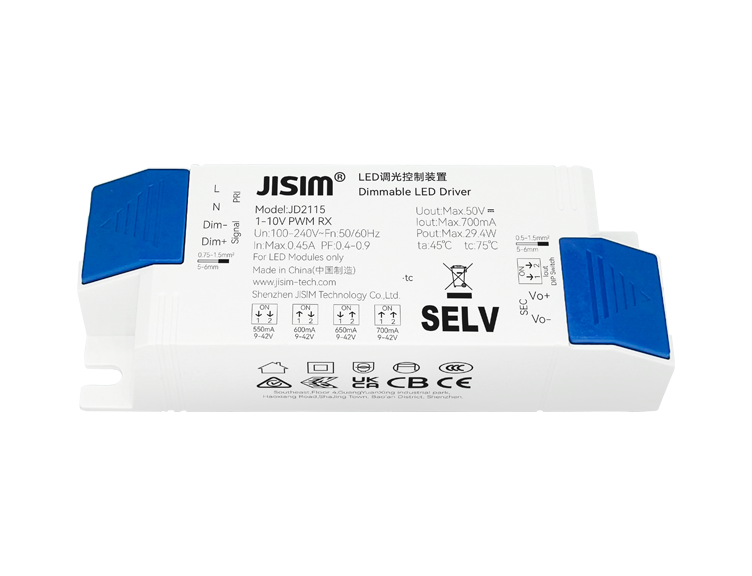

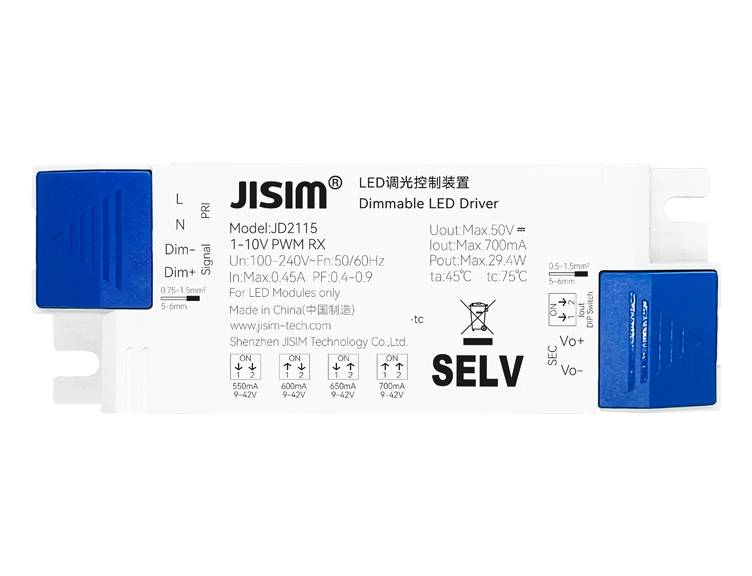

JD2115 0/1-10V 29.4W 550-700mA 220-240VAC DIP

HomeProduct0/1-10V PWM RX

JD2115 0/1-10V 29.4W 550-700mA 220-240VAC DIP

Product Features

紧凑型设计，适用于小开孔筒射灯、线型灯
可调光恒流驱动，高功率因数，高效率、长寿命
适用于0-10V、1-10V、10V PWM、100K电位器调光
双极架构设计，内置MCU，独特的调光算法，无频闪，无噪声
平滑高性能调光，匹配更多调光器
调光范围0.1…100%，自带缓启动功能
通过拨码开关选择输出电流
输出短路、开路、过载保护
符合安全特低电压标准
输入输出按压式接线端子
环境温度-20～+45℃，最大外壳温度75℃
适用于ⅠⅡⅢ类灯具
保护等级Ⅱ

Consult Now Buy Now

Model Number

JD2115
Rated Voltage

220-240Vac
Output Current

75-1050mA
Product Dimension

115*40*28mm
Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:100.1±10g/pcs,Small Pack:113.3g/pcs,Inner Pack:4.83kg/carton,Outer Pack:20.2kg/carton
Packaging

Inner Pack:40pcs/carton,Outer Pack:160pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.29.4W
Output Voltage

9-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
