JD2104 0/1-10V 42W 750-1050mA 220-240VAC DIP
HomeProduct0/1-10V PWM RX

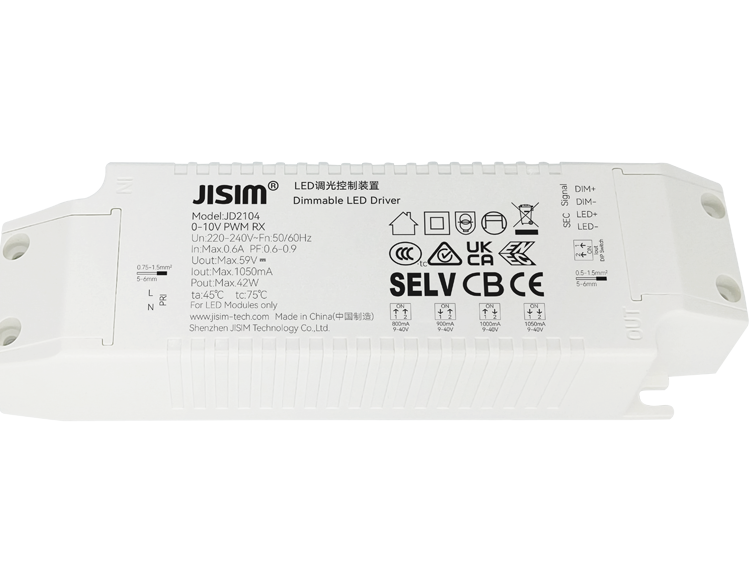

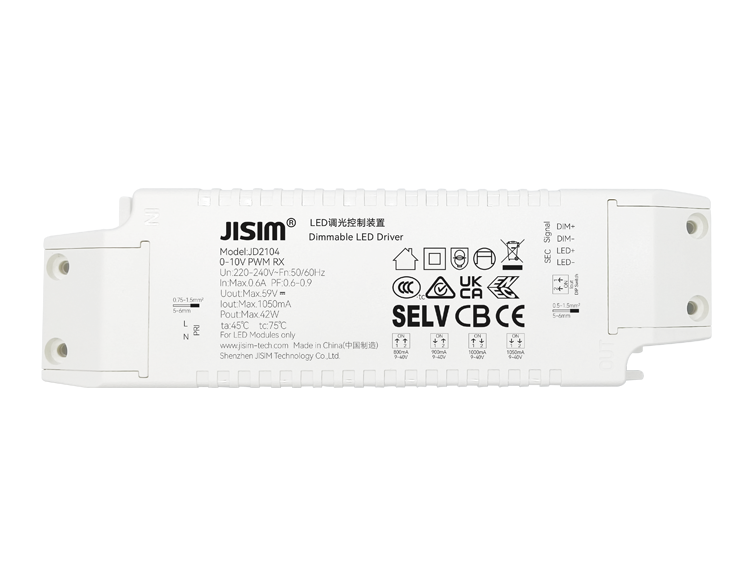

JD2104 0/1-10V 42W 750-1050mA 220-240VAC DIP

Product Features

  • Compact design,suitable for small cut‑out downlights and spotlights,linear lights
  • Dimmable constant‑current driver,high power factor,high efficiency,long service life
  • Compatible with 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
  • Dual‑stage architecture,built‑in MCU,unique dimming algorithm,flicker‑free,noise‑free
  • Smooth high‑performance dimming,compatible with more dimmers
  • Dimming range 1…100%
  • Dip‑switch selectable output current
  • Output short‑circuit,open‑circuit and overload protection
  • Complies with safety extra‑low‑voltage standard
  • Push‑in input and output terminals
  • Ambient temperature ‑20～+45℃,maximum case temperature 75℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD2104
  • Rated Voltage
    220-240Vac
  • Output Current
    750-1050mA
  • Product Dimension
    152*44*30mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:163±10g/pcs,Small Pack:181.2g/pcs,Inner Pack:5.7kg/carton,Outer Pack:23.8kg/carton
  • Packaging
    Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.42W
  • Output Voltage
    9-40V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    75℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
