JD2112 0/1-10V 29.4W 550-700mA 220-240VAC DIP
HomeProduct0/1-10V PWM RX

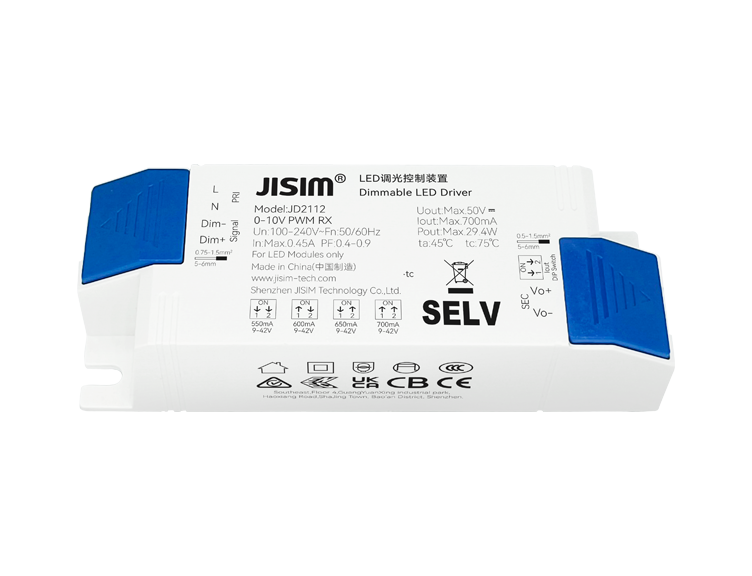

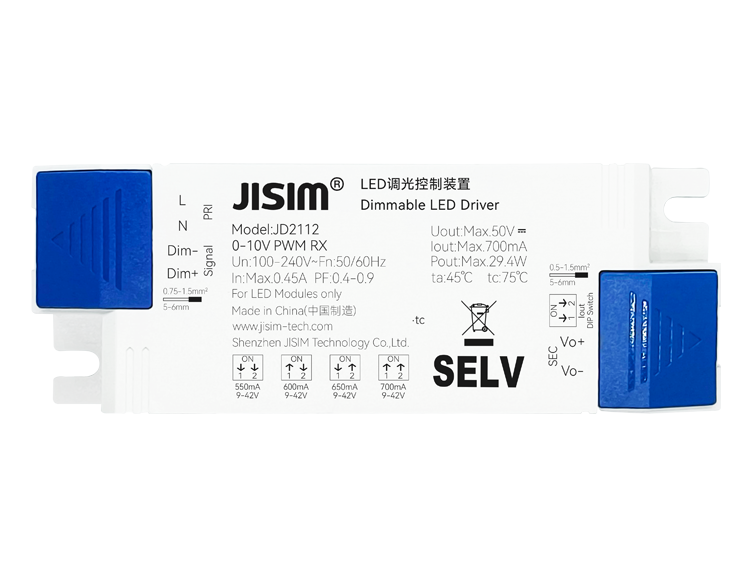

JD2112 0/1-10V 29.4W 550-700mA 220-240VAC DIP

Product Features

  • Compact design,suitable for small‑aperture downlight‑spotlight,linear light
  • Dimmable CC driver,high power factor,high efficiency,long service life
  • Compatible with 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
  • Bipolar architecture design,built‑in MCU,unique dimming algorithm,flicker‑free and noise‑free
  • Smooth high‑performance dimming,compatible with more dimmers
  • Dimming range 1…100%
  • Select output current via DIP‑switch
  • Output short‑circuit,open‑circuit and overload protection
  • Complies with SELV standard
  • Push‑in type input and output terminals
  • Ambient temperature‑20～+45℃,Maximum case temperature 75℃
  • Suitable for Class ⅠⅡⅢ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD2112
  • Rated Voltage
    220-240Vac
  • Output Current
    550-700mA
  • Product Dimension
    115*40*28mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:106.3±10g/pcs,Small Pack:120g/pcs,Inner Pack:5.1kg/carton,Outer Pack:21.3kg/carton
  • Packaging
    中包：40pcs/箱，大包:160pcs/箱
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.29.4W
  • Output Voltage
    9-42V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    75℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
