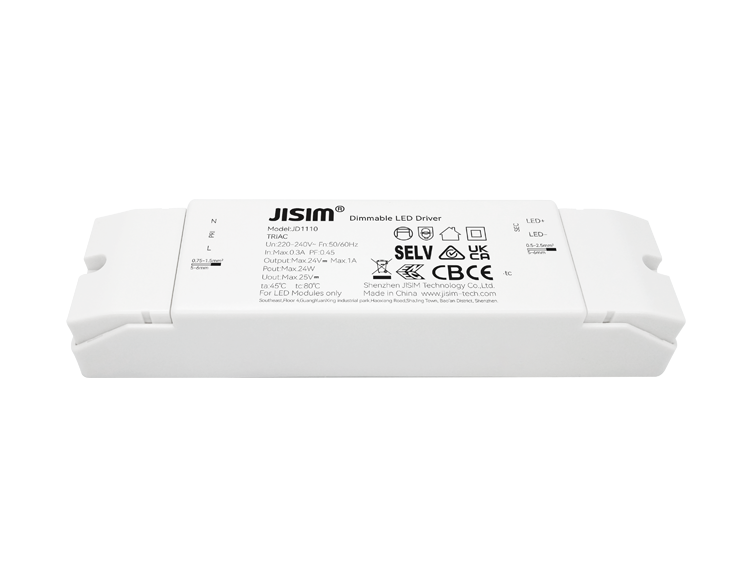

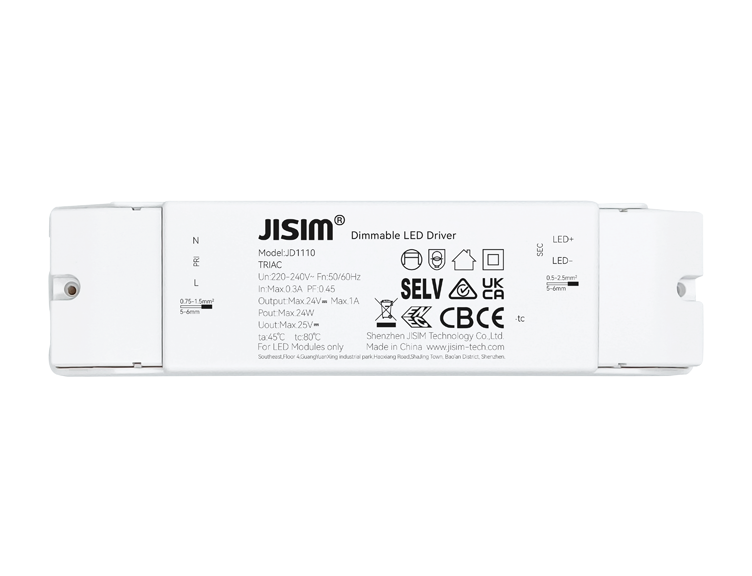

JD1110 Triac 24W 1A 220-240VAC DIP
HomeProductTriac

JD1110 Triac 24W 1A 220-240VAC DIP

Product Features

  • Independent design, suitable for LED strips, LED bars, linear lights, LED film lights, magnetic attraction lights and decorative lights
  • Dimmable CV driver, full power, high efficiency and long service life
  • Compatible with Triac leading‑edge or trailing‑edge phase‑cut dimmers
  • Built‑in MCU, unique dimming algorithm, flicker‑free and noise‑free
  • Smooth high‑performance dimming, compatible with more dimmers
  • Dimming range 0.1…100%, built‑in soft‑start function
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with SELV standard
  • Screw‑locking input and output terminals
  • Ambient temperature: -20～+45℃, maximum enclosure temperature 90℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD1110
  • Rated Voltage
    220-240Vac
  • Output Current
    1A
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    Triac
  • Dimming Range
    0.1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:151.7±10g/pcs,Small Pack:168.4g/pcs,Inner Pack:5.35kg/carton,Outer Pack:22.3kg/carton
  • Packaging
    Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.24W
  • Output Voltage
    24V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
