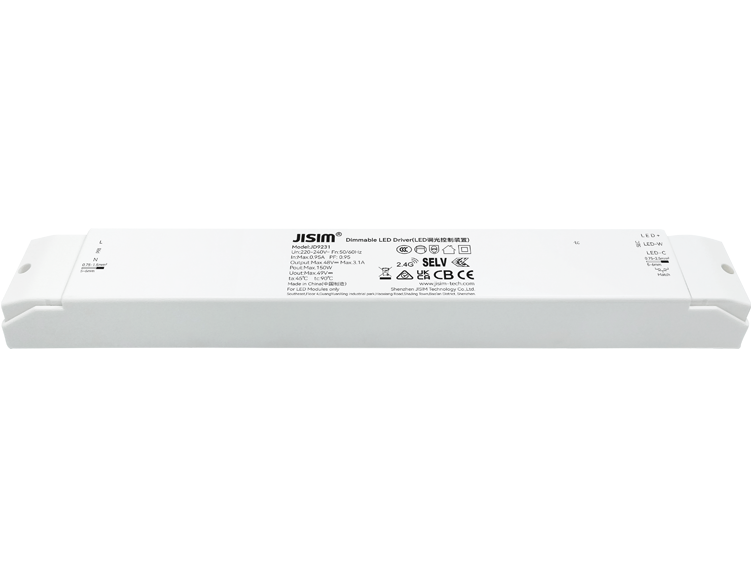

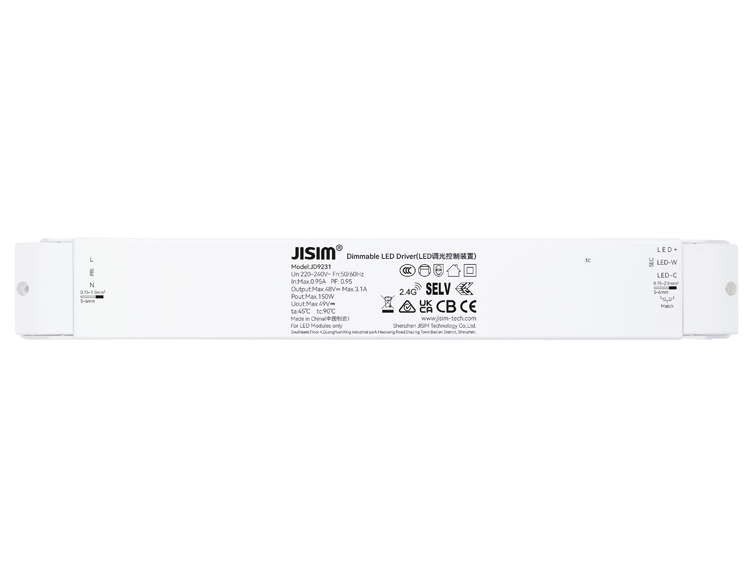

JD9231 2.4G RF 150W 3.1A 220-240VAC DIP

Independent design, suitable for LED strips, light bars, linear lights, lamp films, magnetic lights and decorative lights
Dimmable constant voltage driver with CCT tuning, full power, high power factor, high efficiency and long lifespan
2.4G RF wireless communication, Mesh networking capability, strong anti-interference ability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1...100%, with built-in soft start function
Supports local remote control and panel control, remote control distance (open area) >30m
Output short-circuit, open-circuit and overload protection
Complies with SELV standard
Input and output screw-locking terminals
Ambient temperature -20 to +45°C, maximum case temperature 90°C
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Model Number

JD9231
Rated Voltage

220-240Vac
Output Current

3.1A
Product Dimension

325*44*30mm
Dimming Mode

2.4G RF
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight: 363.1±10g/pcs, Small Pack: 5.55g/pcs, Inner Pack: 6.65kg/carton, Outer Pack: 23.1kg/carton
Packaging

Inner Pack: 13pcs/carton, Outer Pack: 52pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CV
Output Power

Max.150W
Output Voltage

48V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output: 3750Vac, 5mA, 60s
Insulation Resistance

Input to Output: 100MΩ / 500VDC / 25°C / 70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
